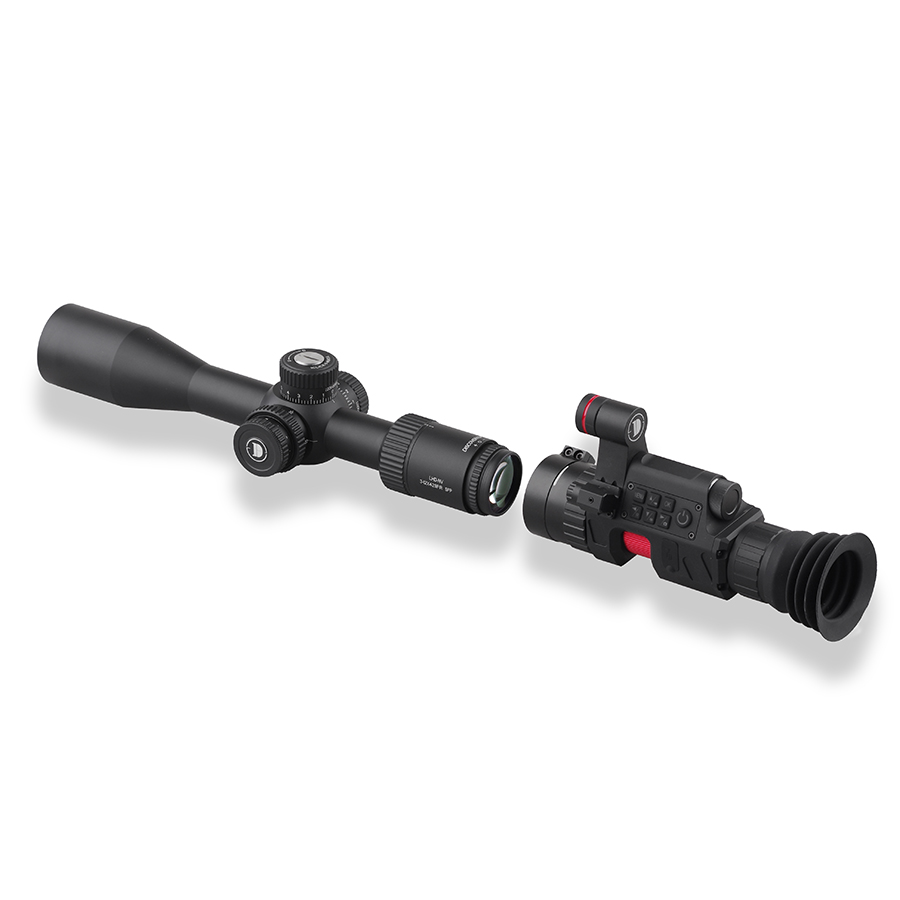

3-12X42SFIR+NV001
Serial NO.:LHD-NV SFP
Specification
Product Description
Magnification: 3-12X
Objective Dia.: 42mm
Tube Diameter: 30mm(1.1inch)
Length: 317mm(12.5 inch)
Weight: 708g (25.0 oz)
Reticle: FFP IR
Focal Plane: Second Focal Plane
Illumination:YES(Red with 6 positions)
Adjust Focus: Side Parallax
Side Parallax Adjustment (Yds): 10Yds-Infinity
Field Of View@100yards(ft): 27.5-4.6
Eye Relief:3.5in-4.0in(90mm-100mm)
Zero Reset: YES
Zero Stop: No
Zero Lock: YES(Lock=Down)
Click Adjustment Value: 1/4MOA
Elevation Adj. Range: 110MOA
Windage Adj. Range:110MOA
Coating: Fully Multi-coated Lenses
Nitrogen Filled: Yes
Shock Proof: Yes
Water Proof: Yes
Fog Proof: Yes
key features
Operating Voltage: 3.55-4.5V
Size: 195x103x69
Model Number: NV001
Infrared Ray Launcher Type: No Transmitter
Battery: Battery
Effective Visual Distance: 300M
Magnification: 3.57X
Weight: 485g
Type: DISCOVERYOPT
Origin: Mainland China
Duration: 8h
Snap ring size: <46.5
Frame rate: 30FPS
Battery: 18650x1
IR compensation wavelength: 820~880NM
resolving power: 1920x1080
focusing range: 0.4-00
Screen pixels: 325PPI
Video format: MOV
Screen size: 1.35 inch
Infrared light power: 5w
Storage type: TF
transmission mode: USB
