Serial NO.:ED-AR

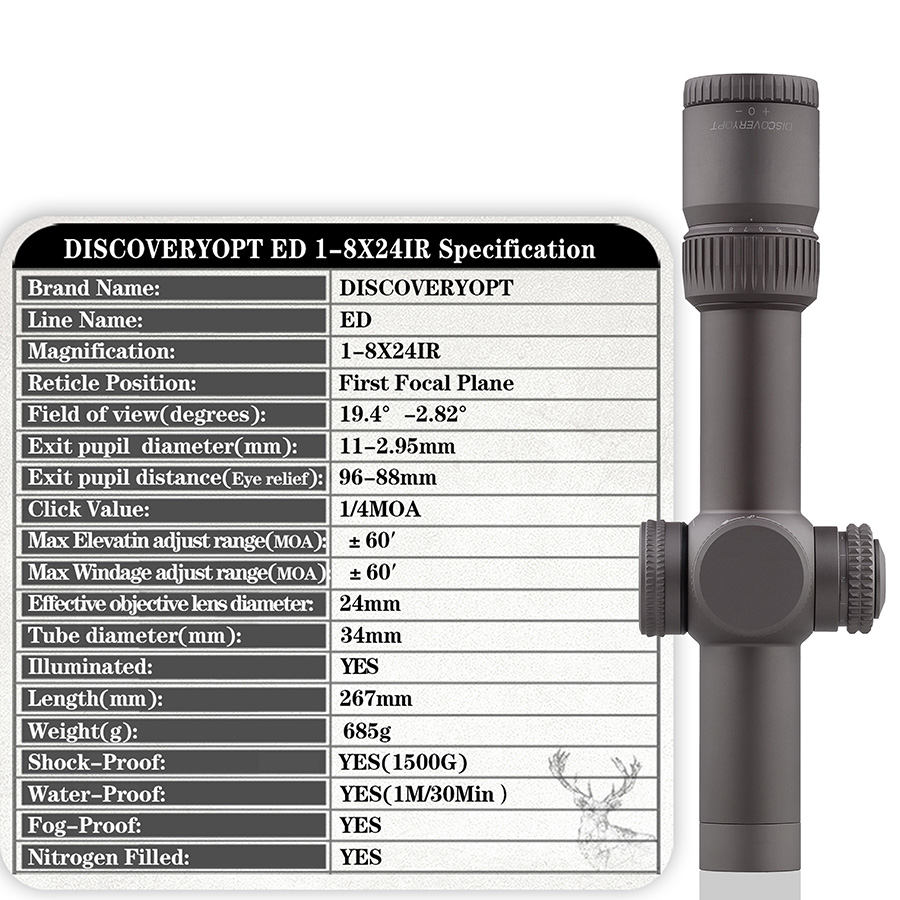

Product Description
Magnification: 1-8X
Objective Dia.: 24mm
Tube Diameter: 34mm(1.34inch)

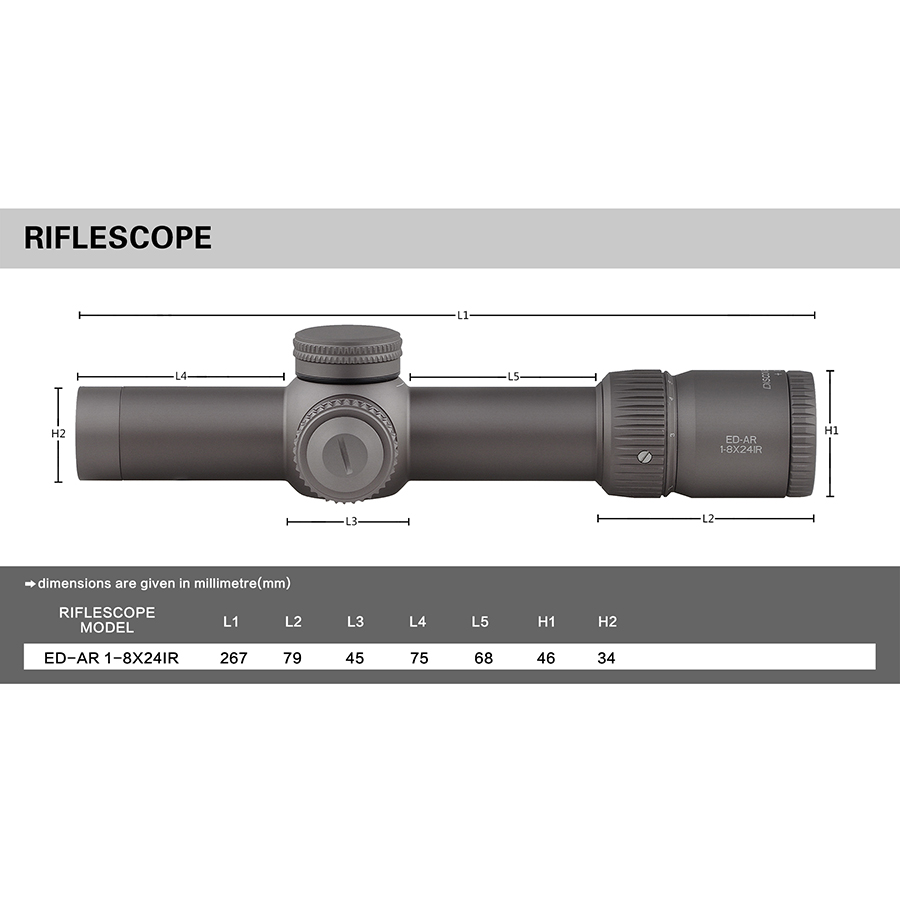

Length: 26.7cm (10.51inch)
Weight: 685g (24.16oz)

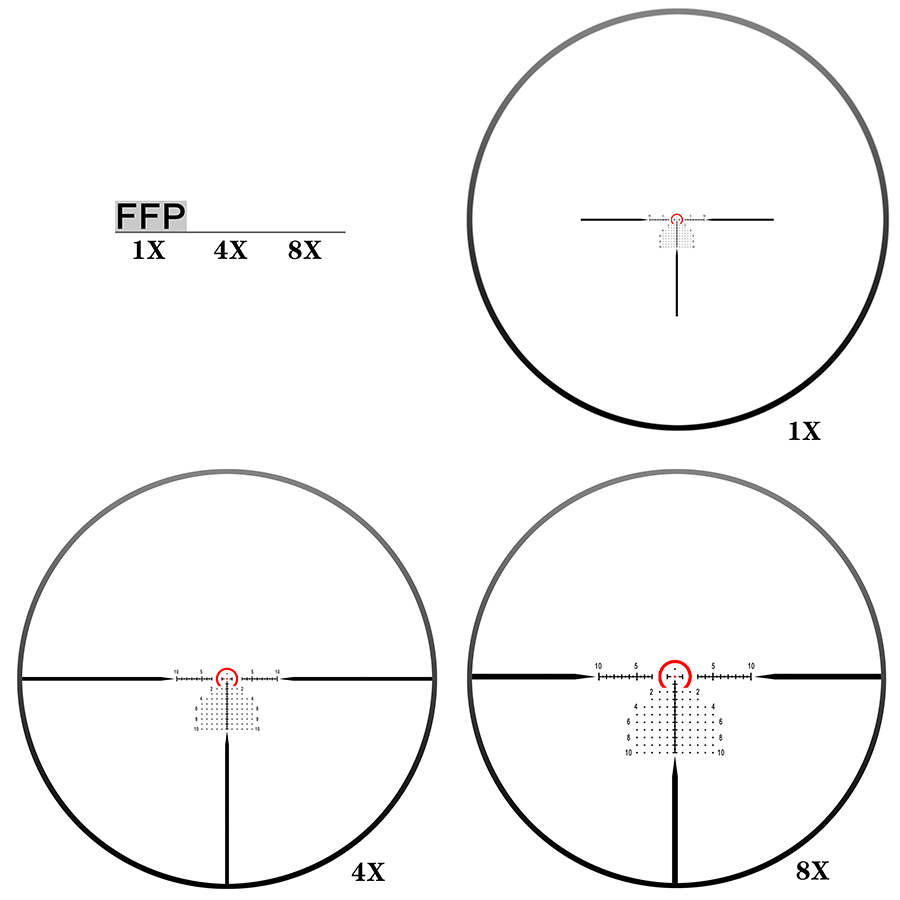

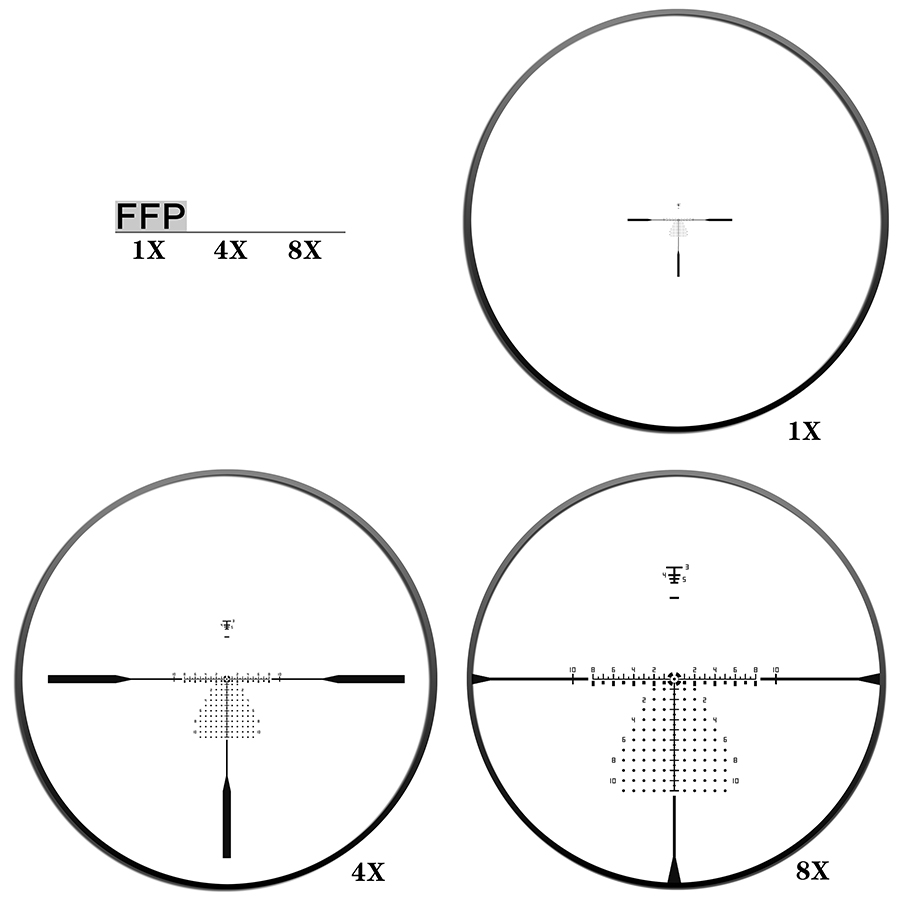

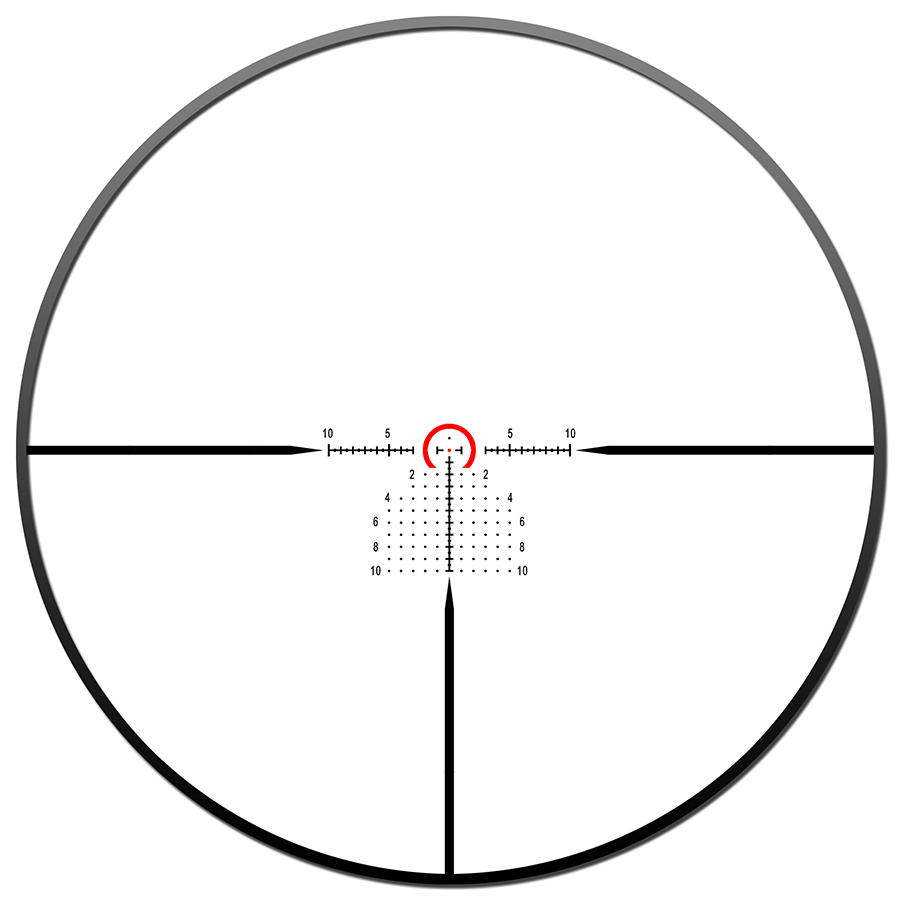

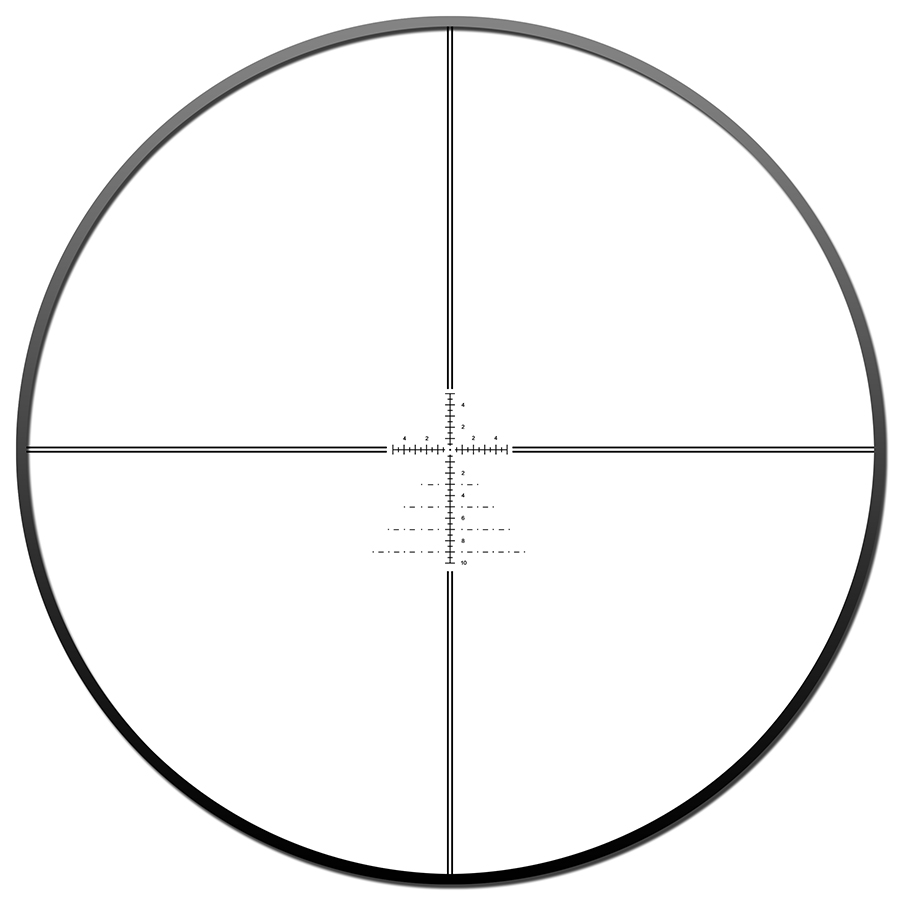

Focal Plane: First Focal Plane
Illumination:  YES(Red with 6 positions)
Adjust Focus: Fixed at 100yrds
Field of view@100yards(ft): 125.76-20.96
Zero Reset: YES
Zero Stop: NO
Revolution Indicator: NO
Zero Lock: YES(Lock=Down)

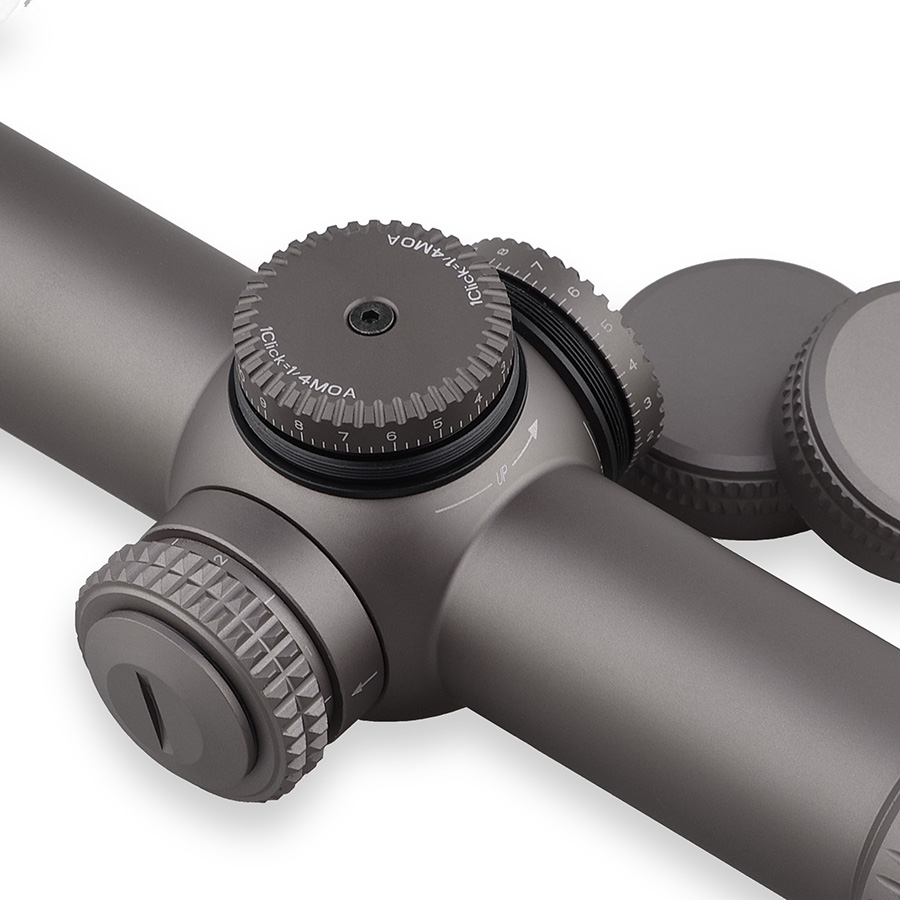

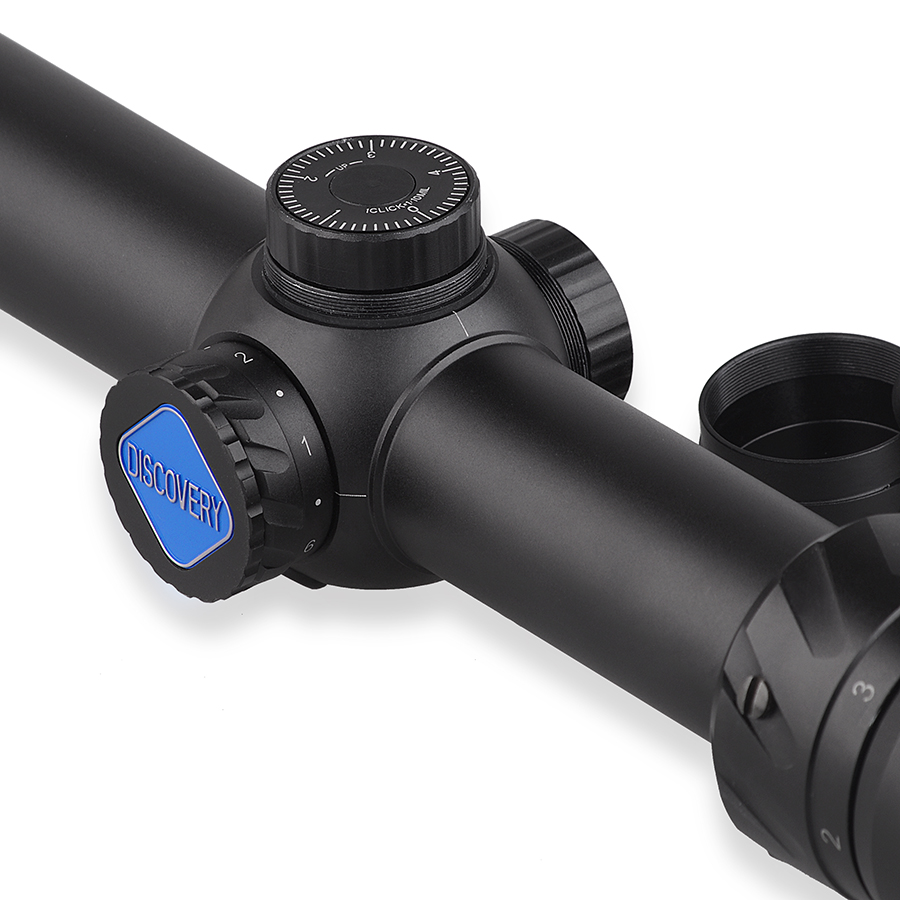

Click Adjustment Value: 1/4MOA
Elevation Adj. Range: 50MOA
Windage Adj. Range: 50MOA

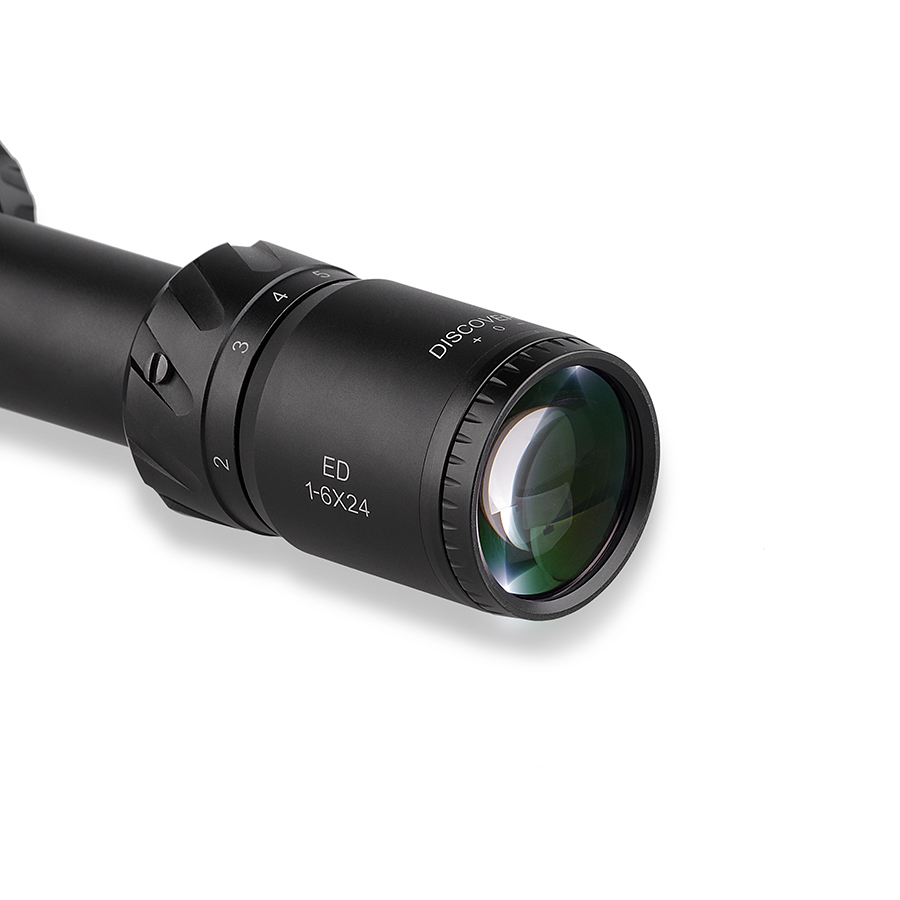

Coating: Fully Multi-coated Lenses
Nitrogen Filled: Yes
Shock Proof: 1500G
Water Proof: 1M/30Min
Fog Proof: Yes

key features

ED FCD100 HOYA glasses provide a extremely low chromatic dispersion, bright and sharp image.
One piece T-6061 aircraft aluminum with full CNC machined and hard anodized scope tube,accurate and solid.
8x times optical design provide a long range power for long range shooting and hunting.
Objective Fixed technology makes the ED line more reliable and recoil proof for big caliber and lifetime using.
Positive Pressure Nitrogen Filling brings 10 meters waterproof and better fog proof performance.
ED life time warranty:
DISCOVERYOPT ED Line is built for a lifetime of performance at the highest level,shot after shot,year after year,generation after generation.
With the DISCOVERYOPT Full Lifetime Warranty,if your DISCOVERYOPT ED doesn’t perform as promised,
we will repair or replace it for free, NO receipt required,No questions asked.(excludes electronic components).
