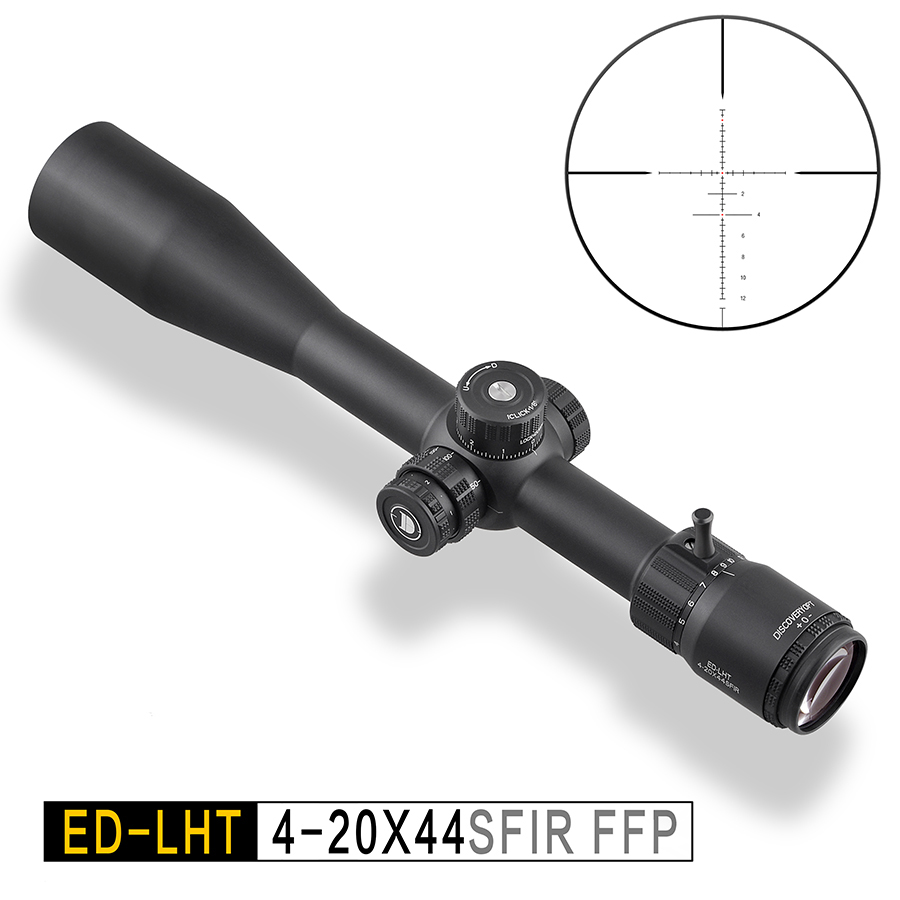

Serial NO.:ED-LHT

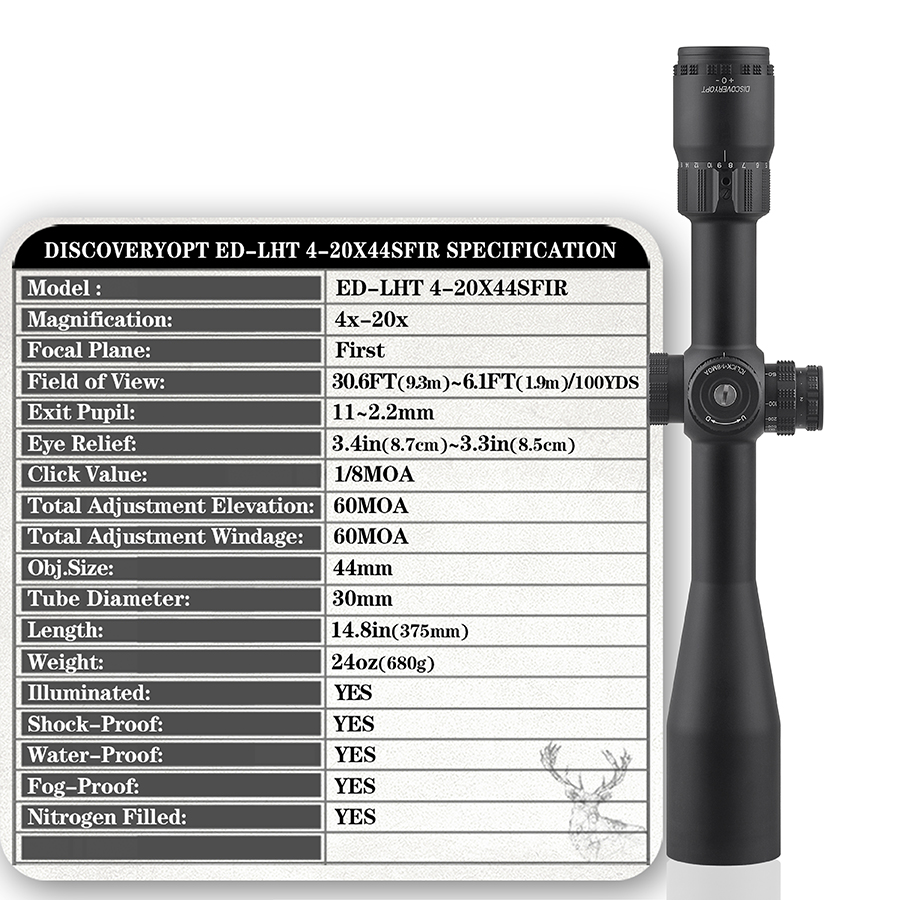

Product Description

Magnification: 4-20X
Objective Dia.: 44mm
Tube Diameter: 30mm(1.1inch)

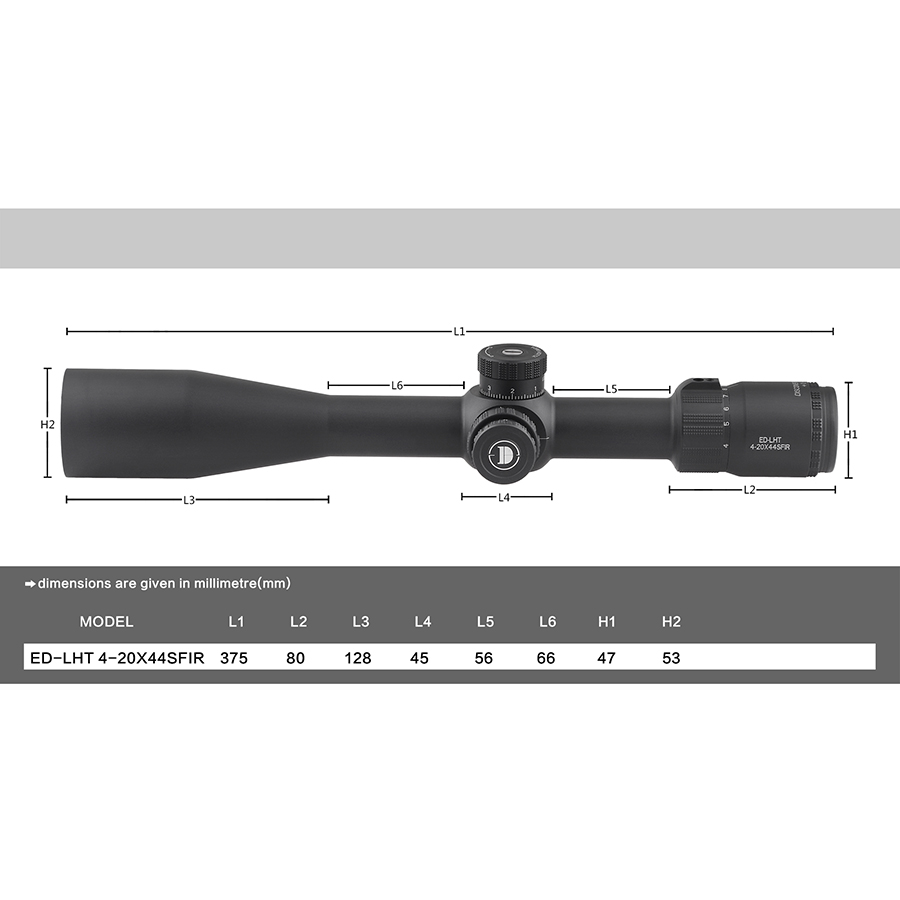

Length: 37.5cm (14.8inch)
Weight: 680g (23.99oz)

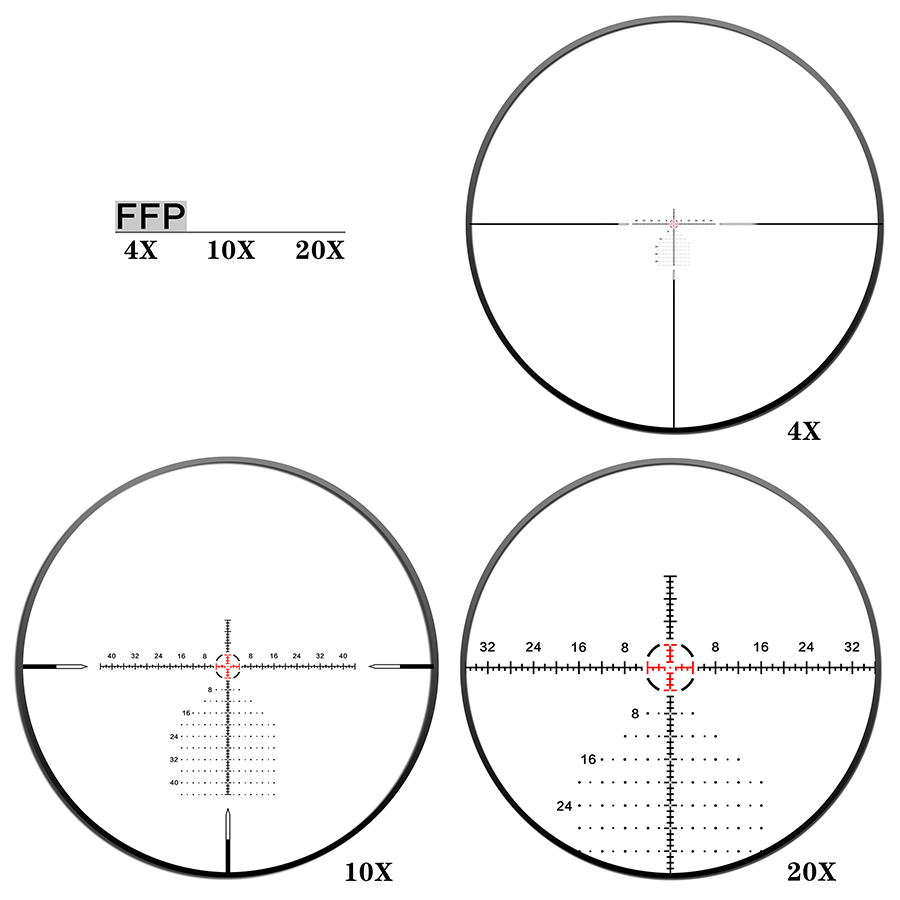

Focal Plane: First Focal Plane

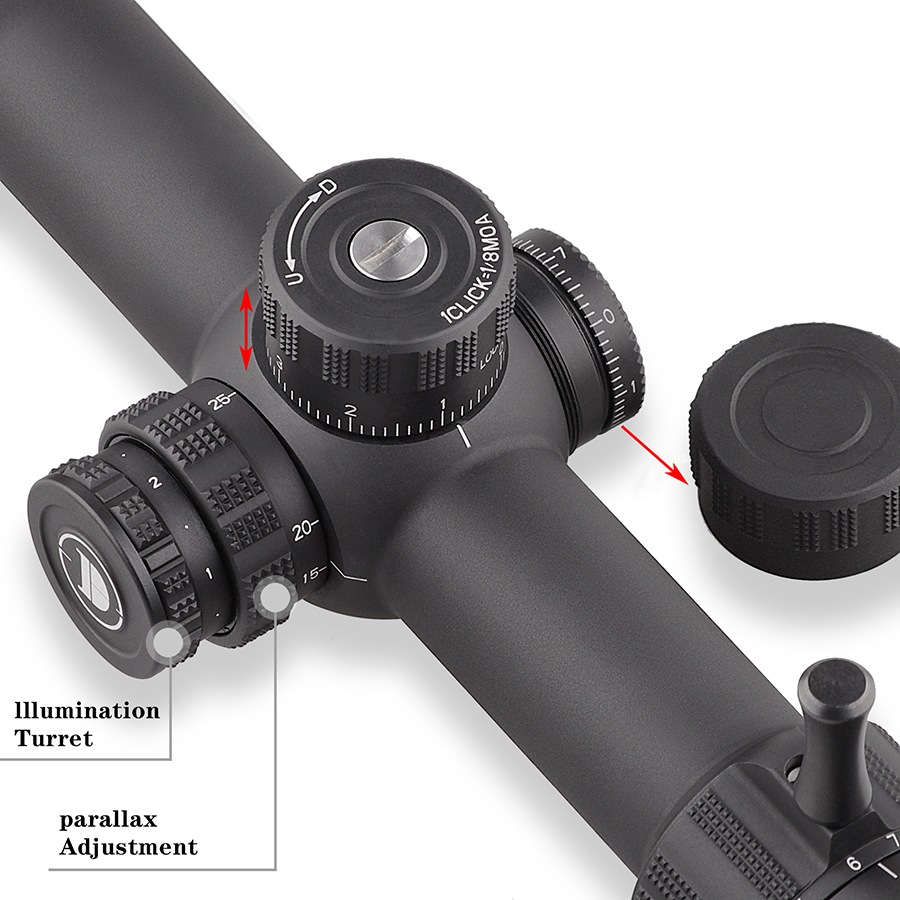

Illumination: YES(Red with 6 positions)

Adjust Focus: Side Parallax
Side Parallax Adjustment (Yds): 15Yds-Infinity
Field of view@100yards(ft): 125.76-20.96

Zero Reset: YES
Zero Stop: NO
Revolution Indicator: NO
Zero Lock: YES(Lock=Down)
Click Adjustment Value: 1/8MOA
Elevation Adj. Range: 60MOA
Windage Adj. Range: 60MOA

Coating: Fully Multi-coated Lenses
Nitrogen Filled: Yes
Shock Proof: 1500G
Water Proof: 1M/30Min
Fog Proof: Yes

key features

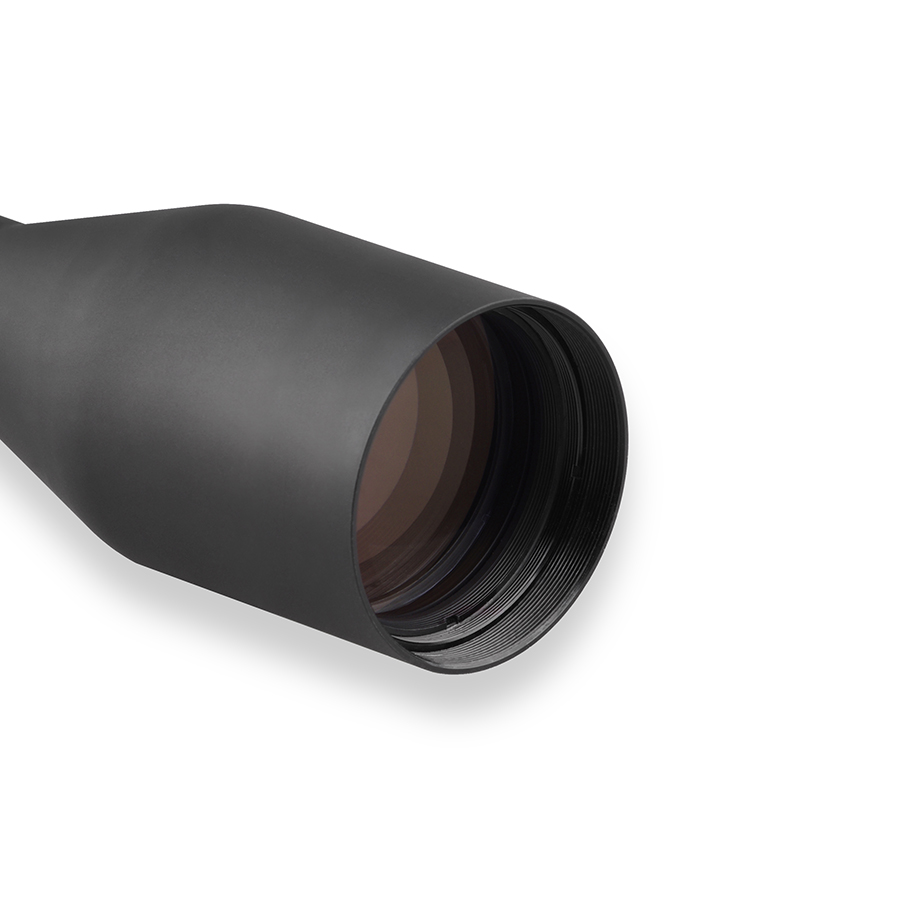

ED Japanese FCD100 HOYA glass lenses provide a extremely low chromatic dispersion, bright and sharp image.

One piece T-6061 aircraft aluminum, CNC machined and hard anodised scope tube, accurate and solid construction.

Tested to 1500 G shock.

5 x times optical design provide a long range power for long range shooting and hunting.

Objective Fixed technology makes the ED line more reliable and recoil proof for large calibre and lifetime use.

Positive Pressure Nitrogen Filling gives 10 meters waterproof and better fog proof performance.

Side focus from 15 yards
