1-6X24IR FFP

Serial NO.:ED-AR

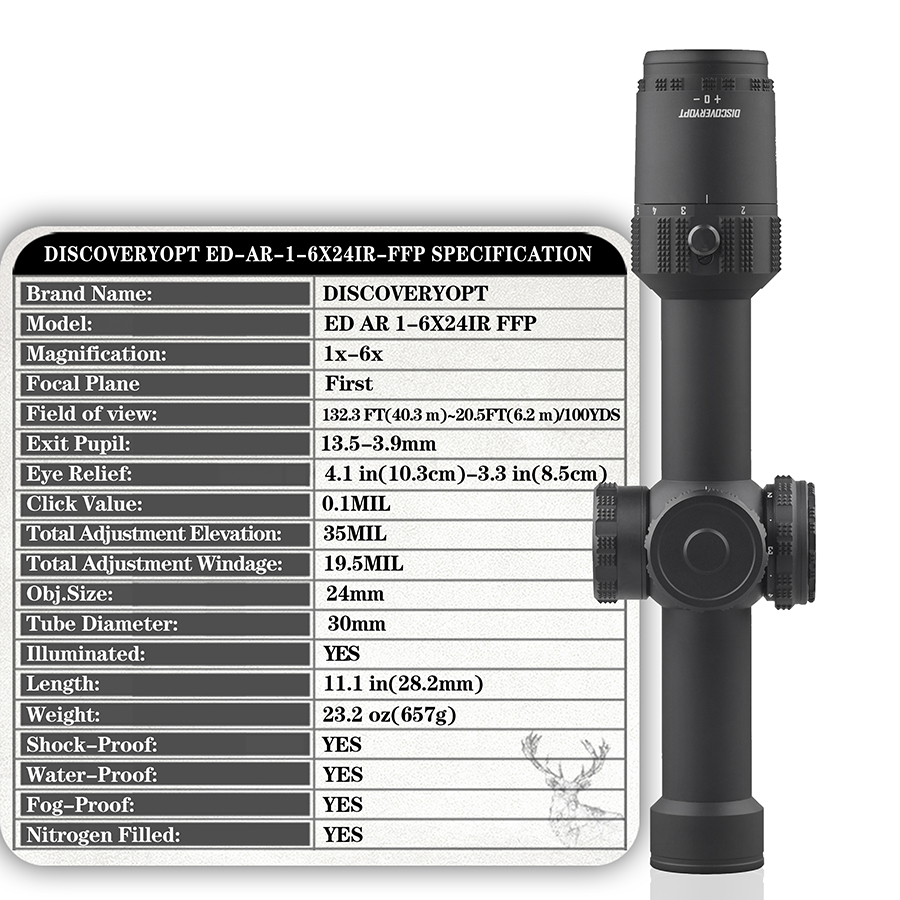

Specification

Product Description

Magnification: 1-6X
Objective Dia.: 24mm
Tube Diameter: 30mm (1.1 inch)

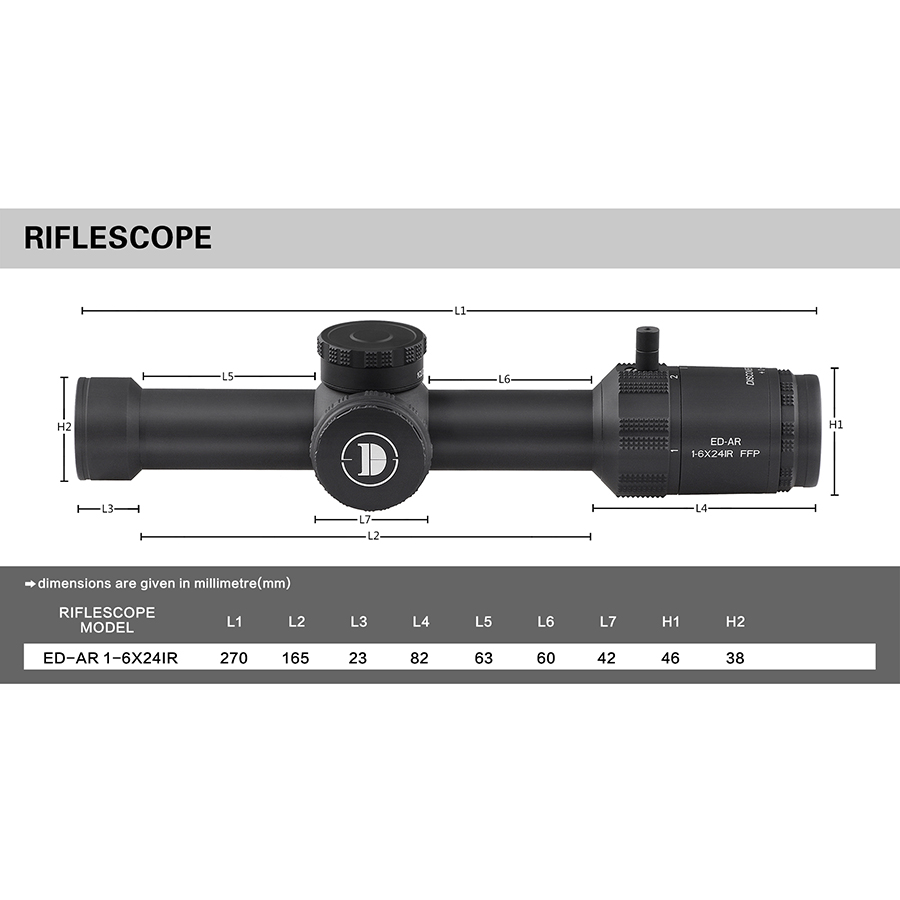

Length: 282mm (11.1 inch)
Weight: 657g (23.2 oz)

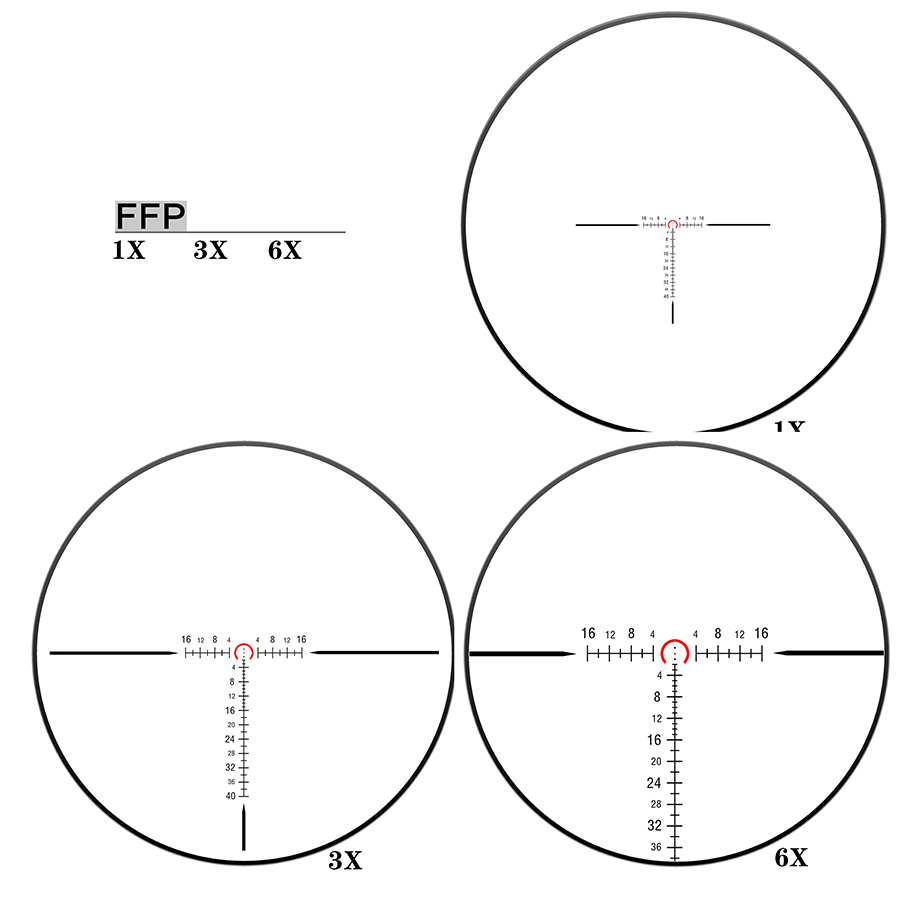

Focal Plane: First Focal Plane


Illumination: YES
Adjust Focus: Not specified (Parallax fixed)
Field Of View@100yards(ft): 132.3ft ~ 20.5ft (40.3m ~ 6.2m)
Exit Pupil: 13.5mm ~ 3.9mm
Eye Relief: 4.1in (10.3cm) ~ 3.3in (8.5cm)


Click Adjustment Value: 0.1MIL
Elevation Adj. Range: 35MIL
Windage Adj. Range: 19.5MIL


Shock-Proof: YES
Water-Proof: YES
Fog-Proof: YES
Nitrogen Filled: YES

key features

Featuring a 1–6x magnification range paired with a 24mm objective lens, it delivers an ultra-wide field of view: 132.3 ft (40.3 m) at 1x, down to 20.5 ft (6.2 m) at 6x per 100 yards, ensuring lightning-fast target acquisition and exceptional situational awareness.

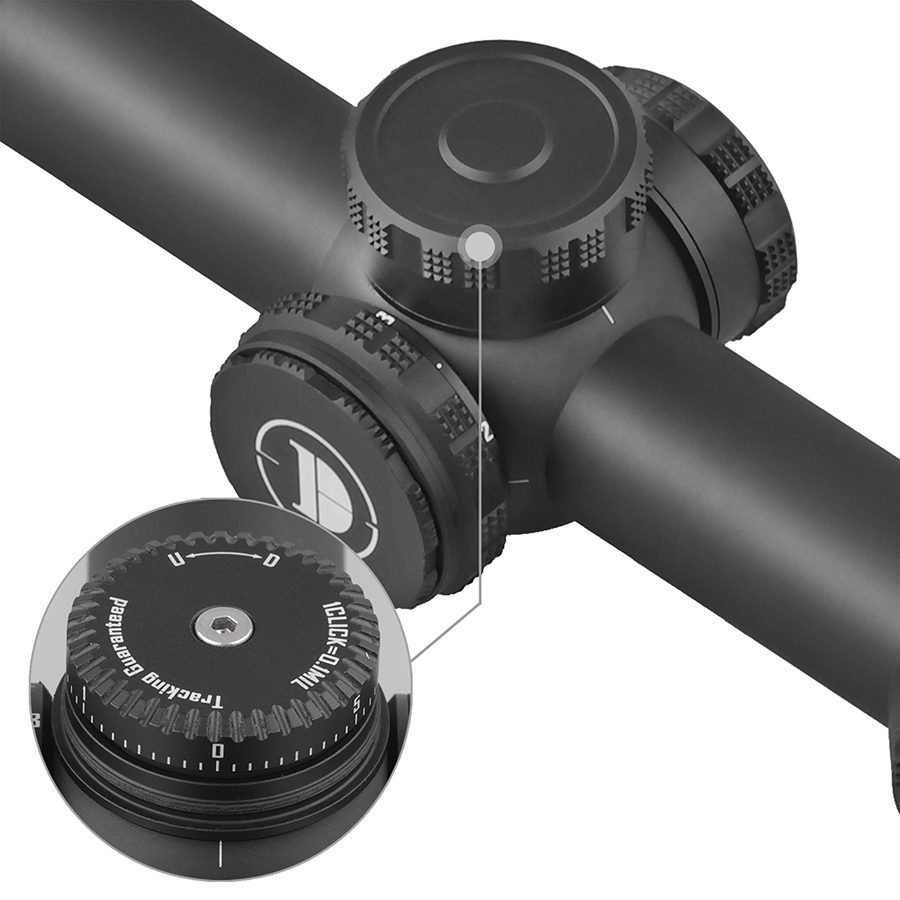

Built on a durable 30mm tube, the scope uses 0.1 MIL click adjustments, with 35 MIL of elevation travel and 19.5 MIL of windage travel, allowing for precise holdover and wind correction. It offers consistent eye relief (3.3–4.1 in / 8.5–10.3 cm) and exit pupil (3.9–13.5 mm), ensuring comfortable, reliable use across all magnifications.

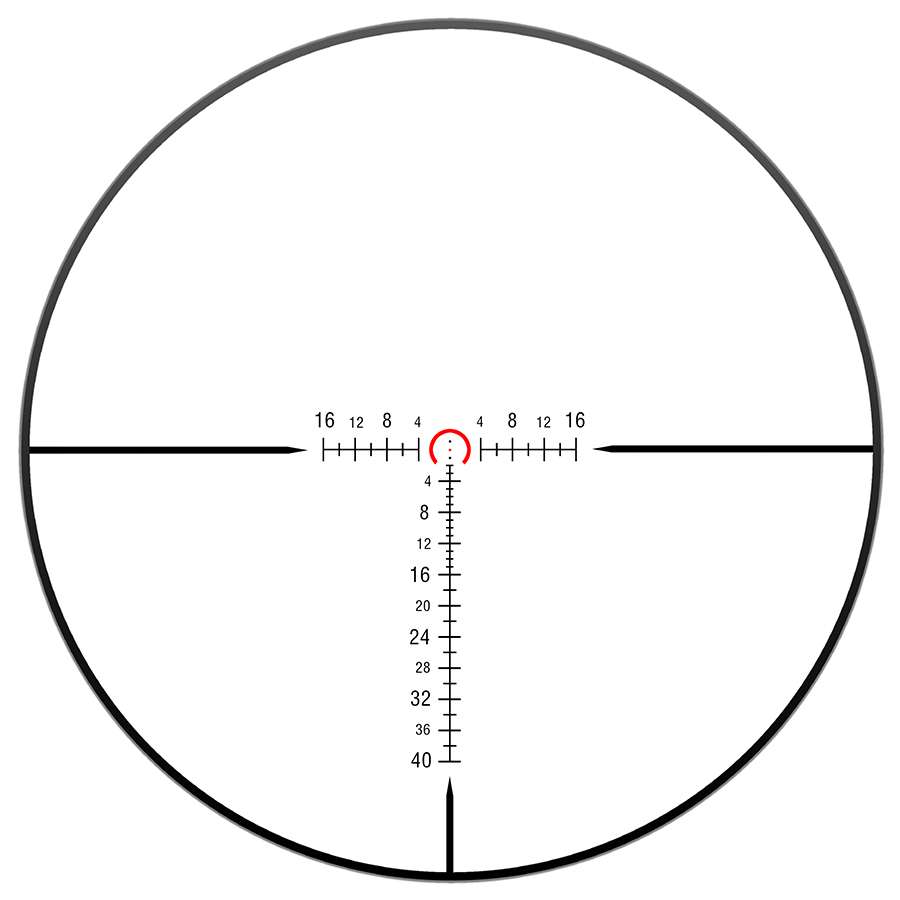

The illuminated reticle enhances visibility in low-light conditions, while its shockproof, waterproof, fog-proof, and nitrogen-filled construction guarantees stable performance in harsh environments and under heavy recoil. At just 11.1 in (282 mm) long and weighing 23.2 oz (657 g), it’s lightweight and compact, ideal for AR-platform rifles and fast-paced shooting setups.
