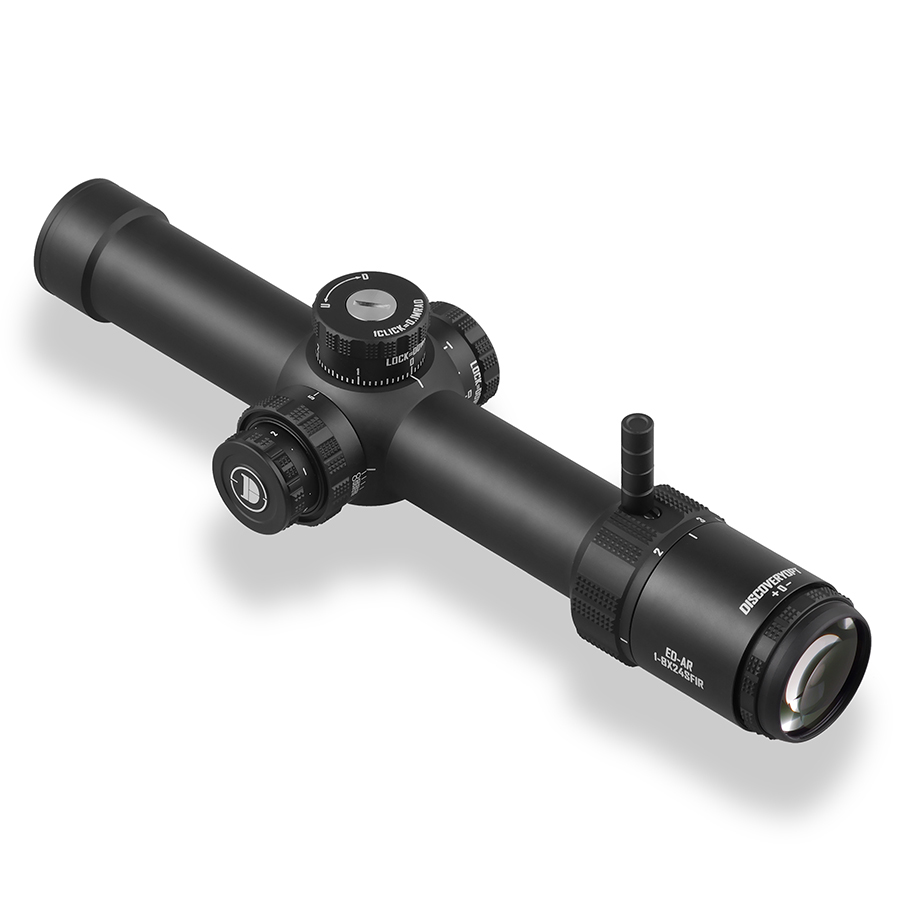

1-8X24SFIR FFP

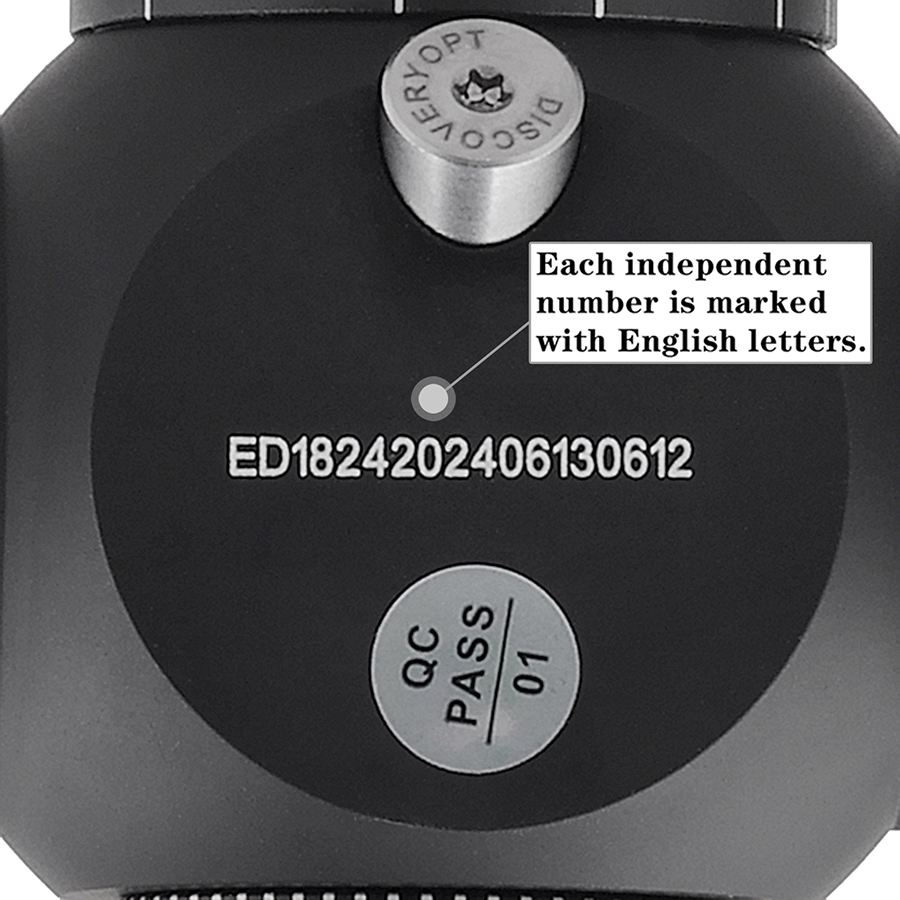

Serial NO.:ED-AR

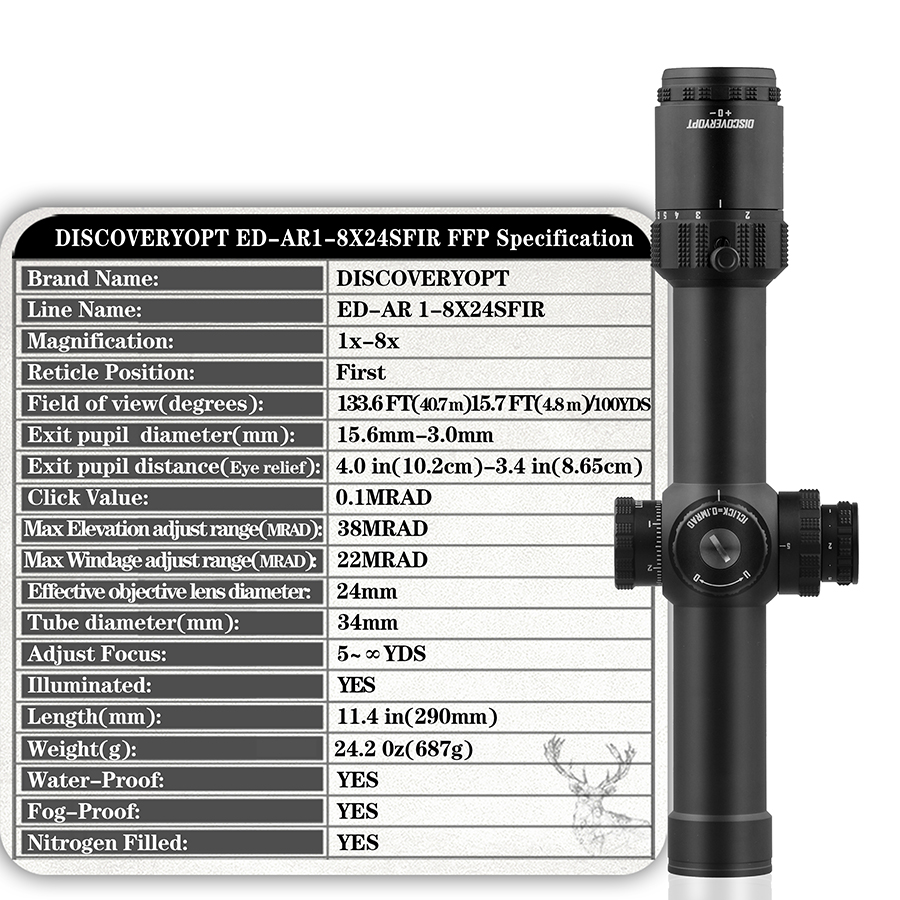

Specification

Product Description

Magnification: 1-8X
Objective Dia.: 24mm
Tube Diameter: 34mm

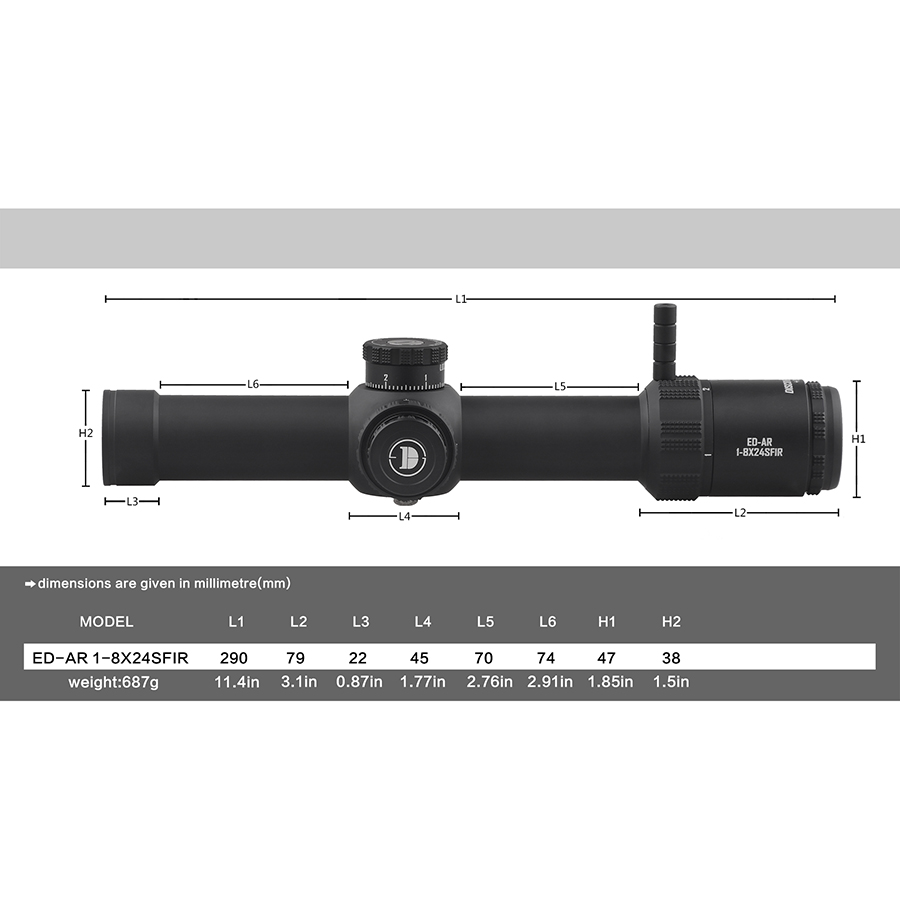

Length: 290mm (11.4 inch)
Weight: 687g (24.2oz)

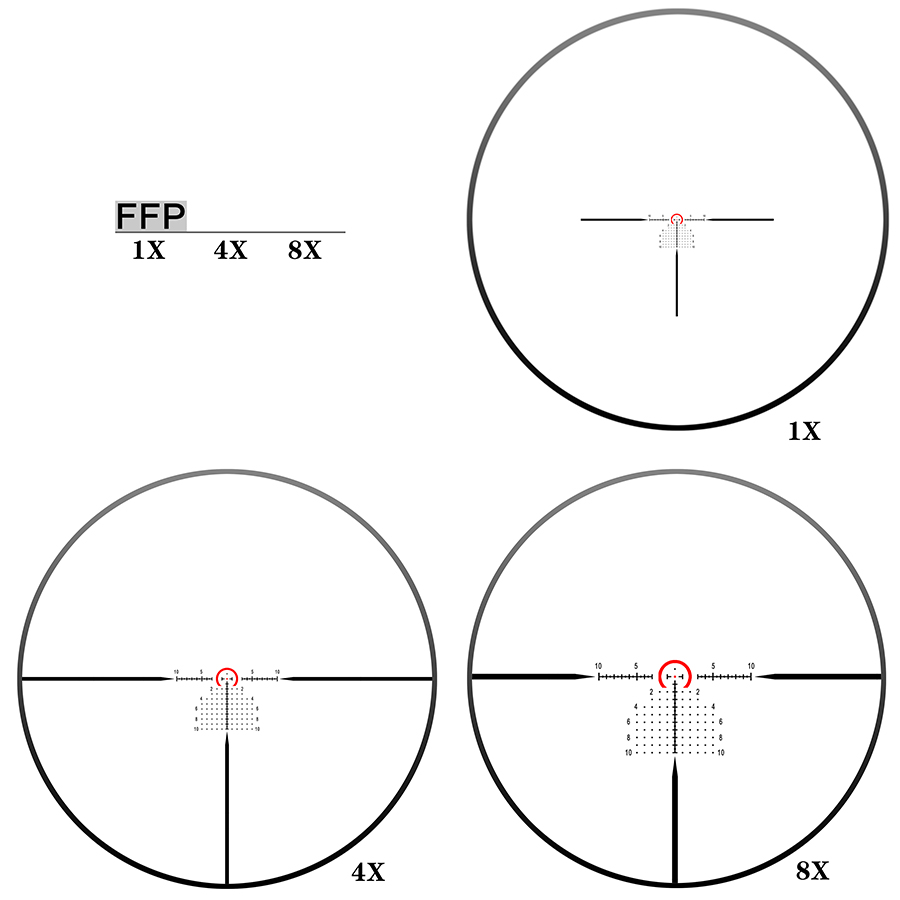

Focal Plane: First Focal Plane


Illumination: YES
Adjust Focus: 5Yds-Infinity
Field Of View@100yards(ft): 133.6FT(40.7m)~15.7FT(4.8m)
Exit Pupil: 15.6mm~3.0mm
Eye Relief: 4.0in(10.2cm)~3.4in(8.65cm)


Click Adjustment Value: 0.1MRAD
Elevation Adj. Range: 38MRAD
Windage Adj. Range: 22MRAD


Water-Proof: YES
Fog-Proof: YES
Nitrogen Filled: YES

key features

Featuring a 1–8x magnification range paired with a 24mm objective lens, it delivers an ultra-wide field of view: 133.6 ft (40.7 m) at 1x, down to 15.7 ft (4.8 m) at 8x per 100 yards, ensuring rapid target acquisition at close quarters and clear detail at longer distances.

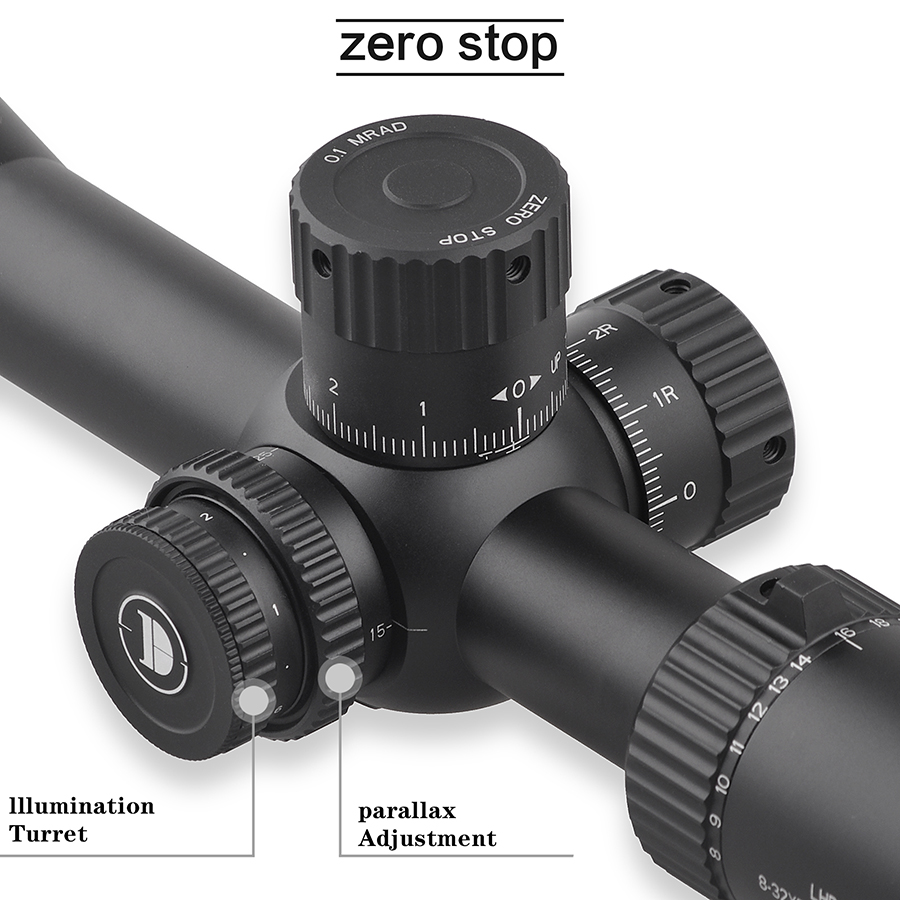

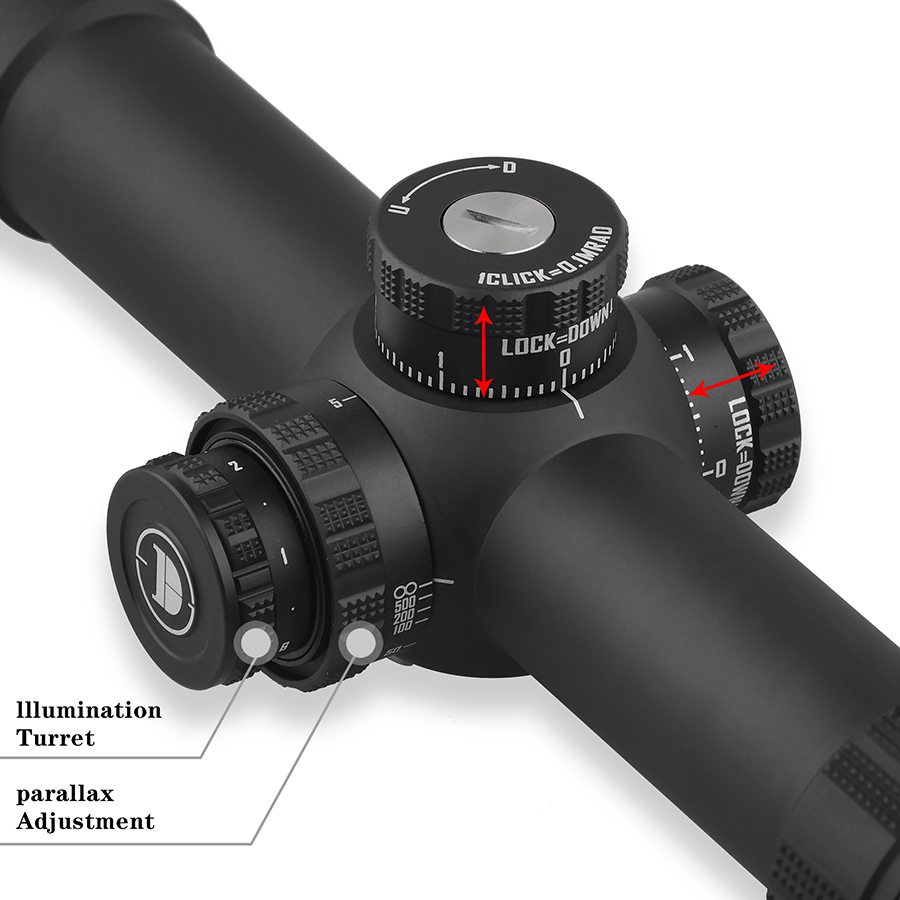

Built on a robust 34mm tube, the scope uses 0.1 MRAD click adjustments, with 38 MRAD of elevation travel and 22 MRAD of windage travel, allowing for precise holdover and wind correction across a wide range of shooting conditions. It offers comfortable eye relief (3.4–4.0 in / 8.65–10.2 cm) and exit pupil (3.0–15.6 mm), plus adjustable parallax from 5 yards to infinity for sharp focus at any range.

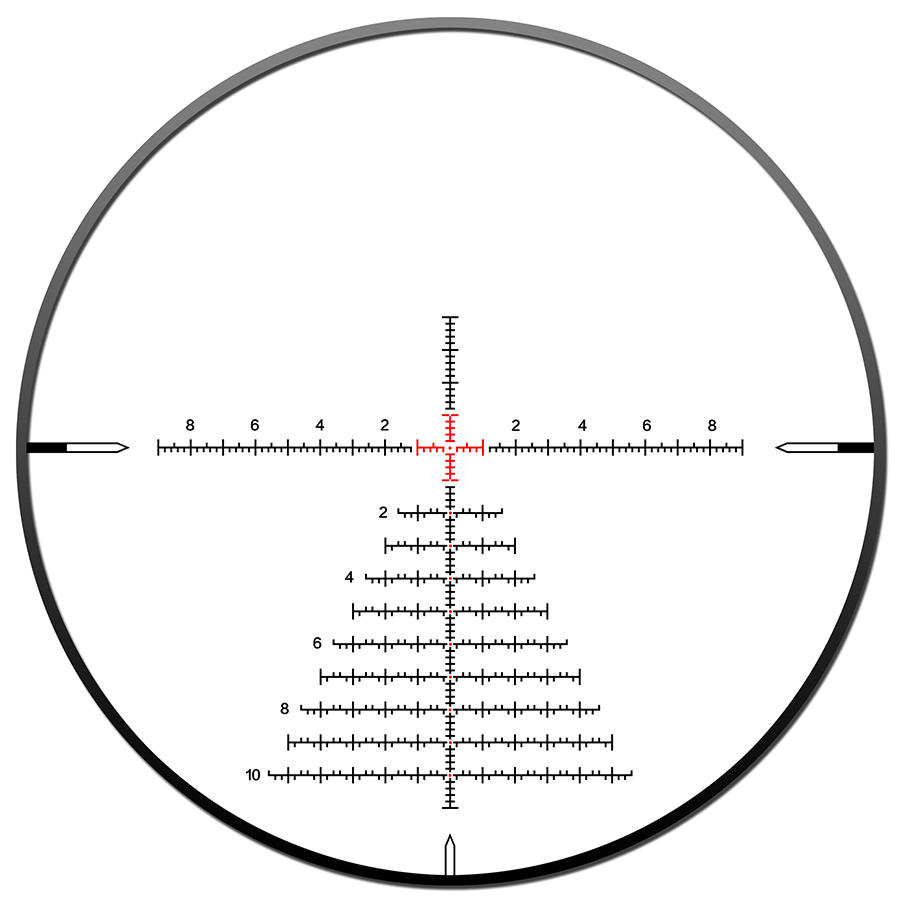

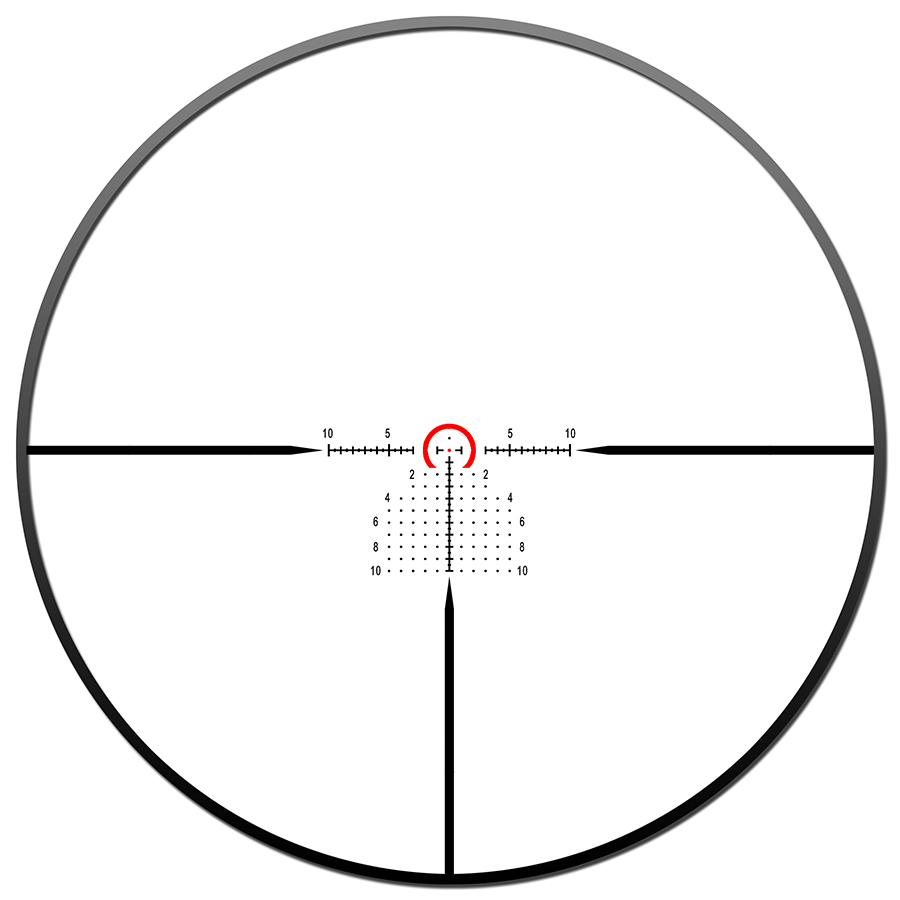

The illuminated reticle enhances visibility in low-light conditions, while its waterproof, fog-proof, and nitrogen-filled construction guarantees reliable performance in harsh environments. At just 11.4 in (290 mm) long and weighing 24.2 oz (687 g), it’s lightweight and compact, making it ideal for AR-platform rifles and dynamic shooting setups.
