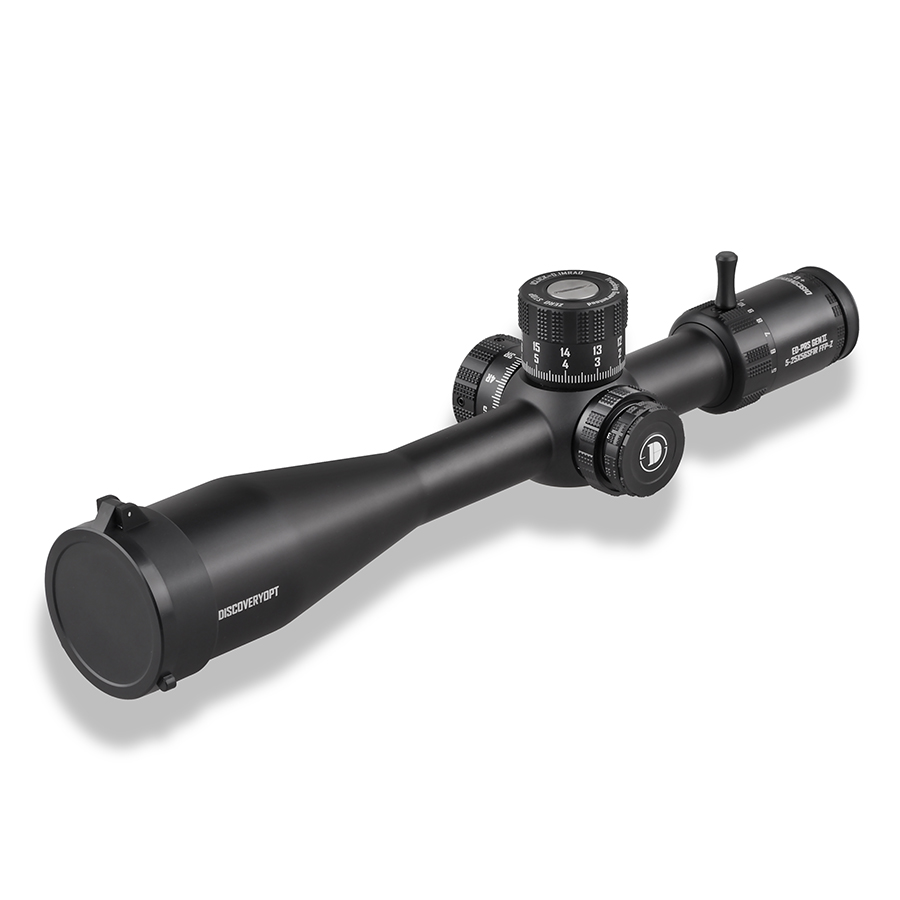

5-25X56SFIR FFP-Z (MRAD)

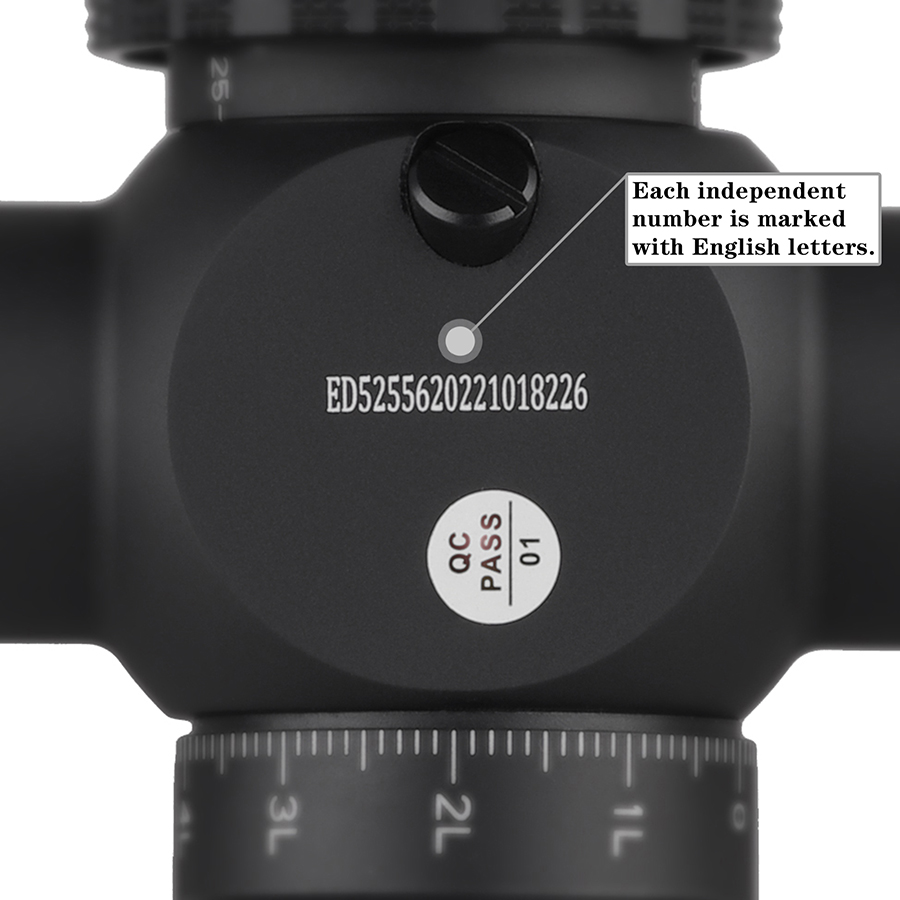

Serial NO.:ED-PRS GEN2

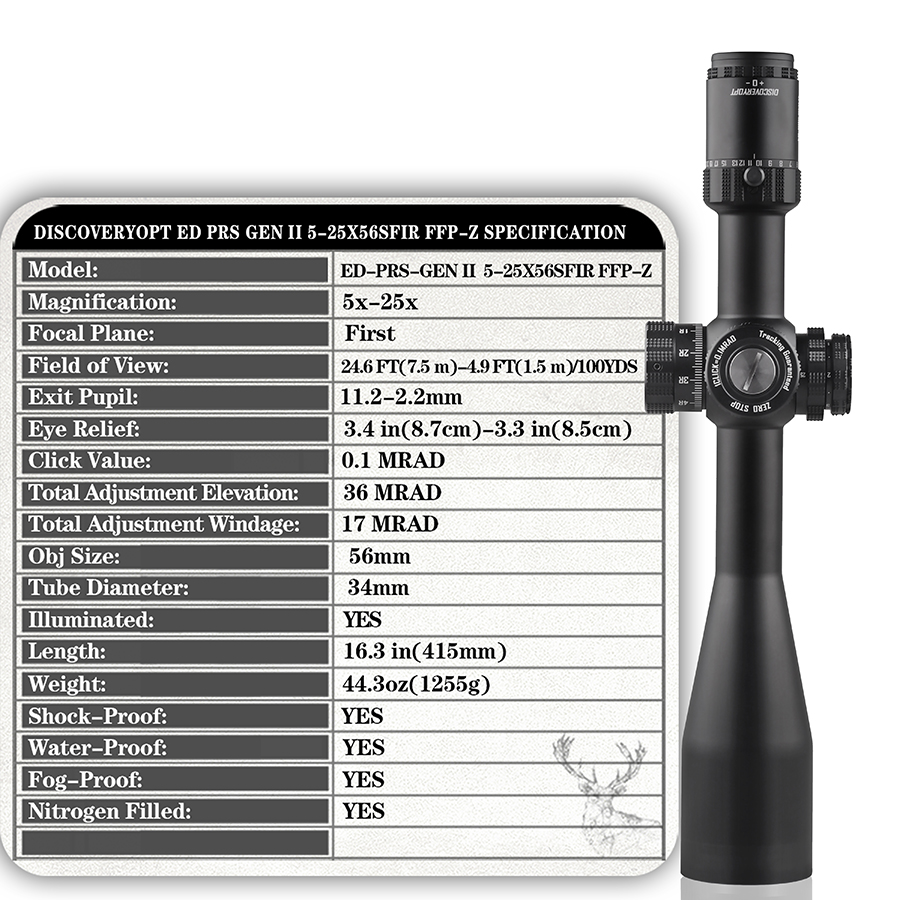

Specification
Magnification: 5-25X
Objective Dia.: 56mm
Tube Dia: 34mm (1.34inch)

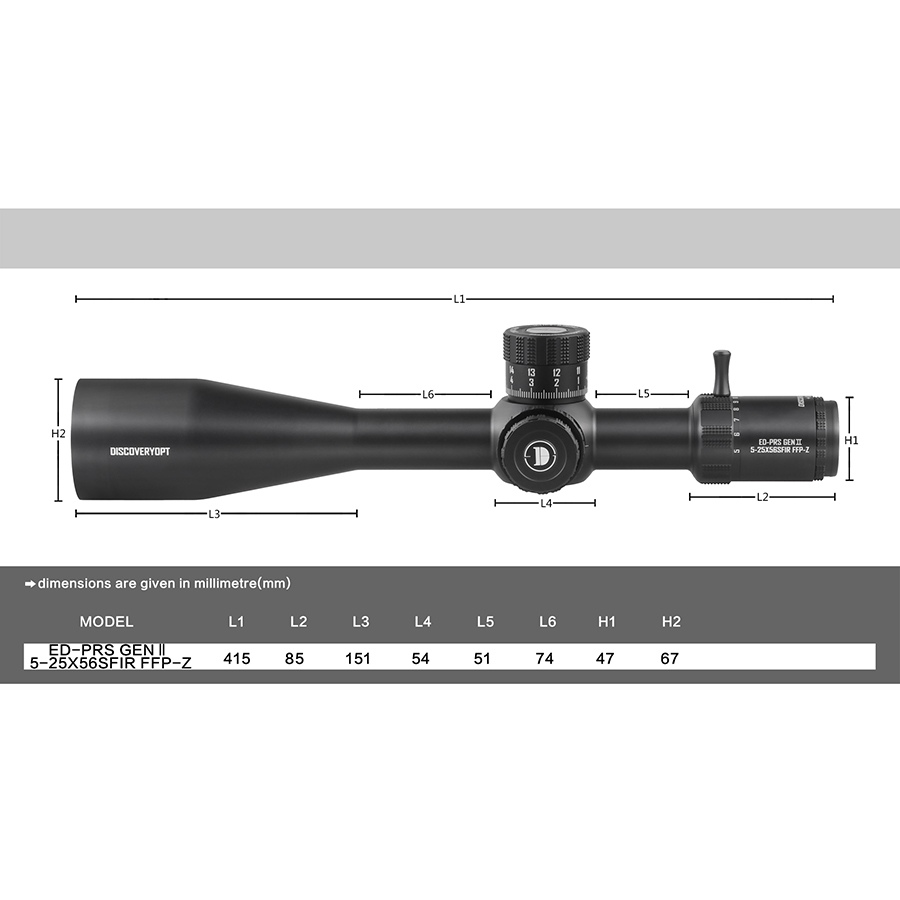

Length: 415mm ( 16.34 inch)
Weight:1255g( 44.3 oz)
Focal Plane: First Focal Plane

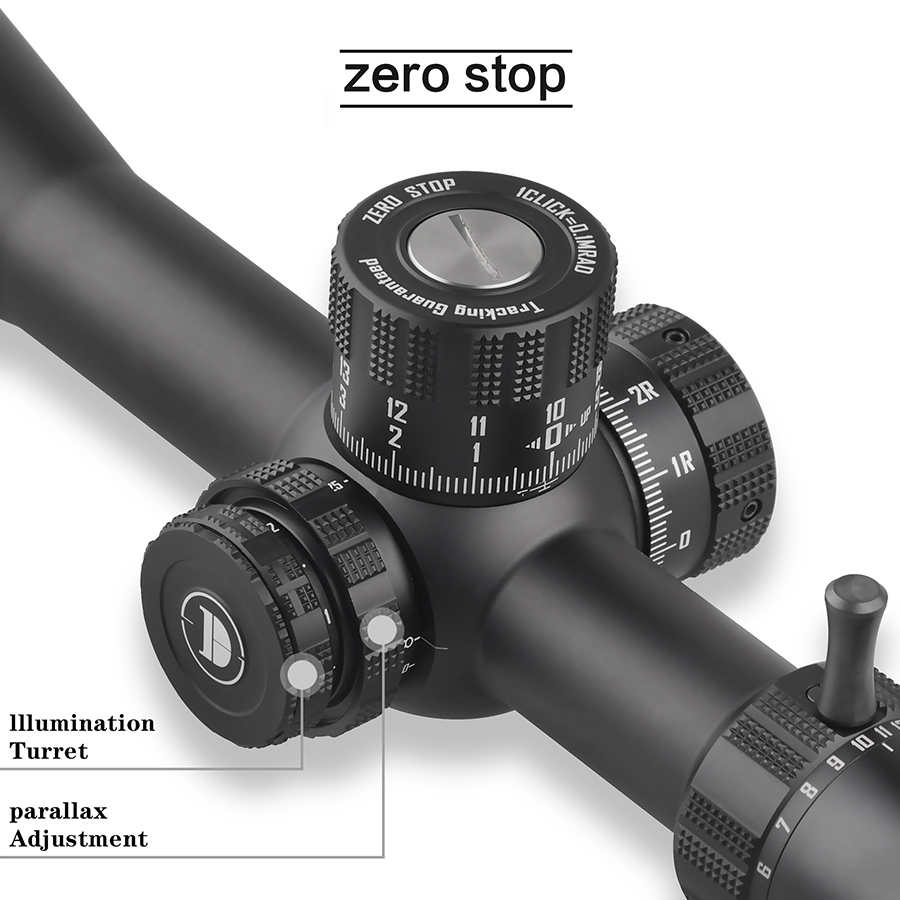

Zero Stop:YES
Illumination: Yes( Red X 6)
Adjust Focus: 25Yds-Infinity
Field of View:24.6FT(7.5m)-4.9FT(1.5m)/100YDS
Exit pupil diameter(mm):11.2mm-2.2mm
Exit pupil distance(Eye relief): 87mm-85mm

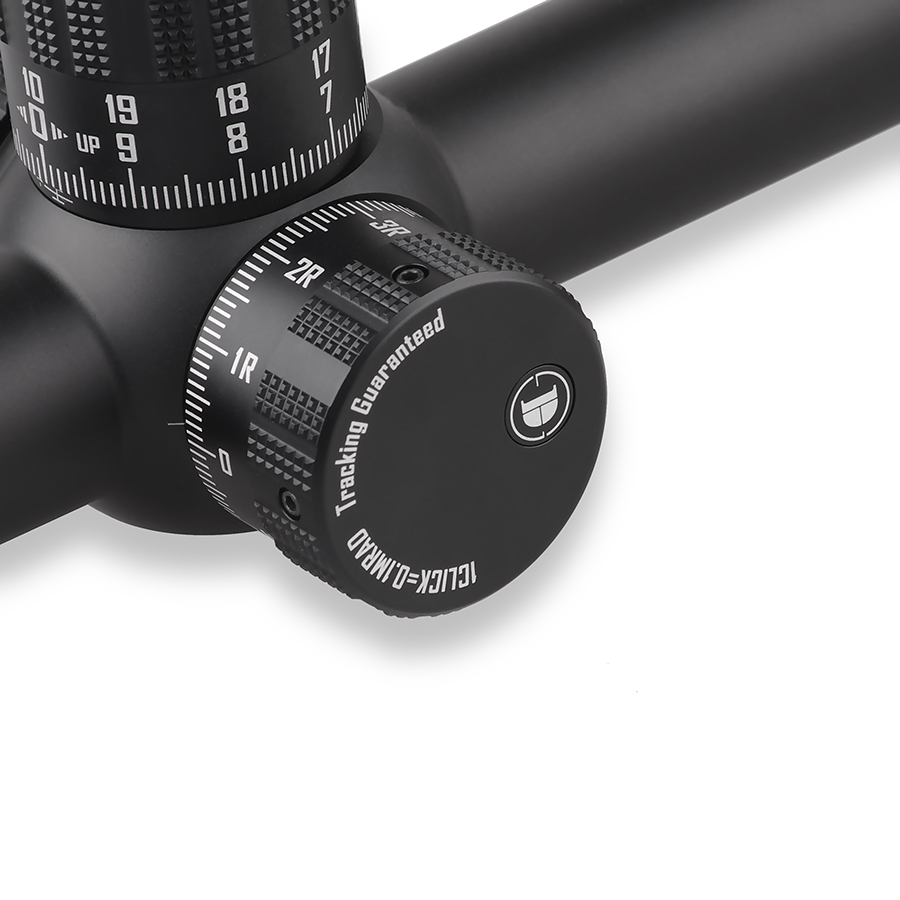

Click Adjustment Value: 0.1MRAD
Elevation Adj. Range:36MRAD
Windage Adj. Range:17MRAD
key features

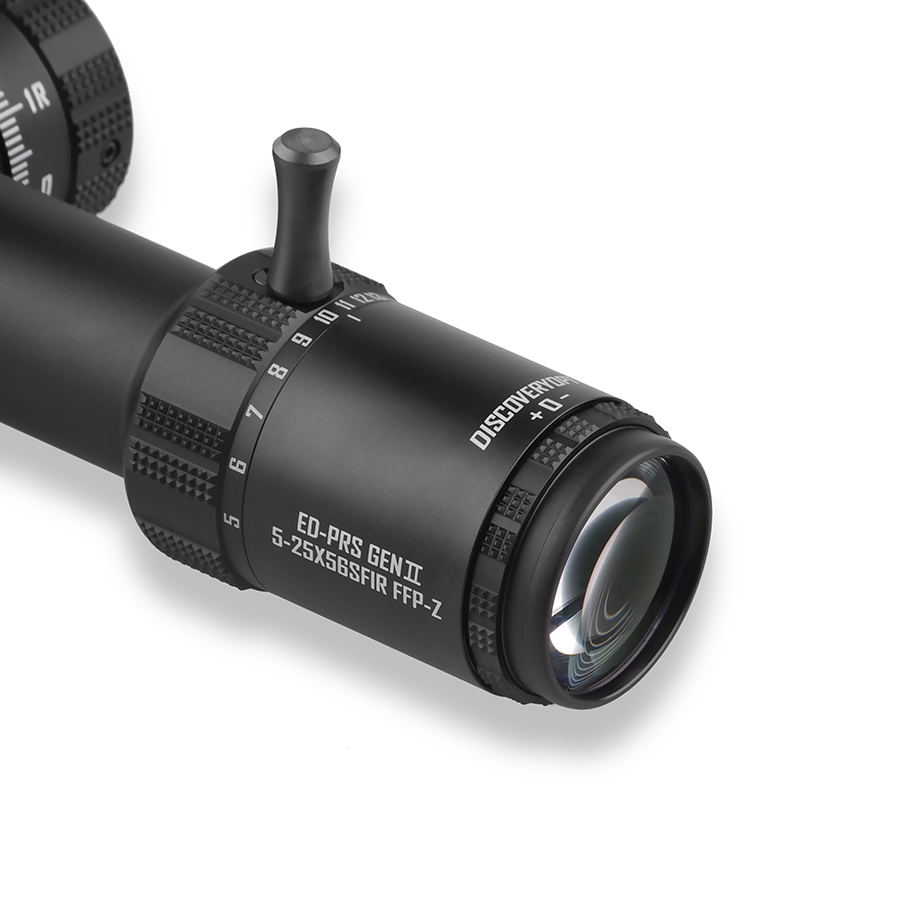

5–25x Variable Magnification
Wide zoom range from low-power close target observation to 25x high magnification for ultra-long-distance precise aiming, covering all common shooting scenarios.

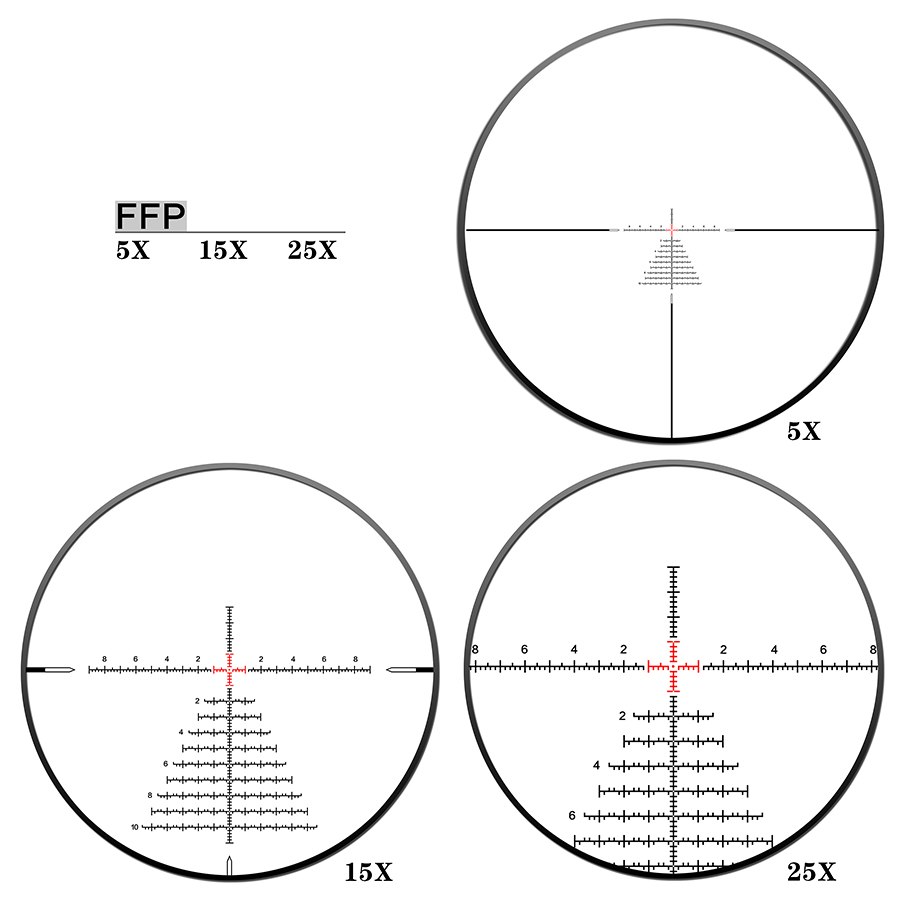

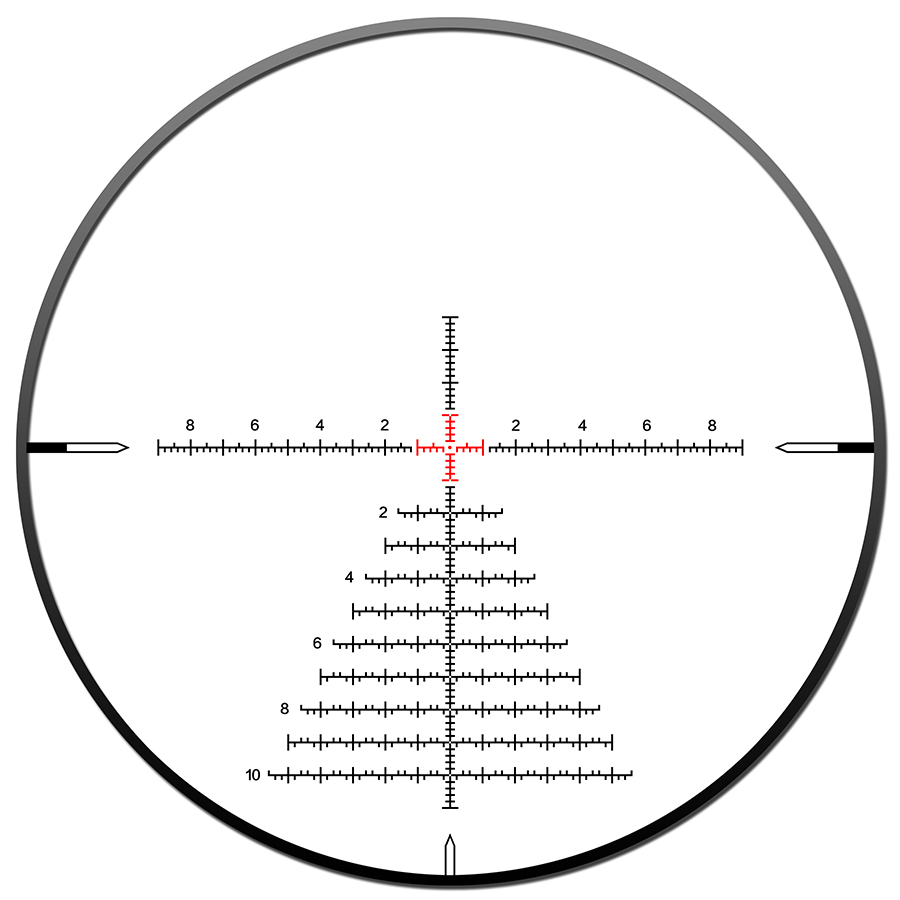

FFP First Focal Plane Reticle
The illuminated reicle scales proportionally with magnification. Holdover and windage markings stay accurate at every zoom level, ideal for long-range ballistic correction.

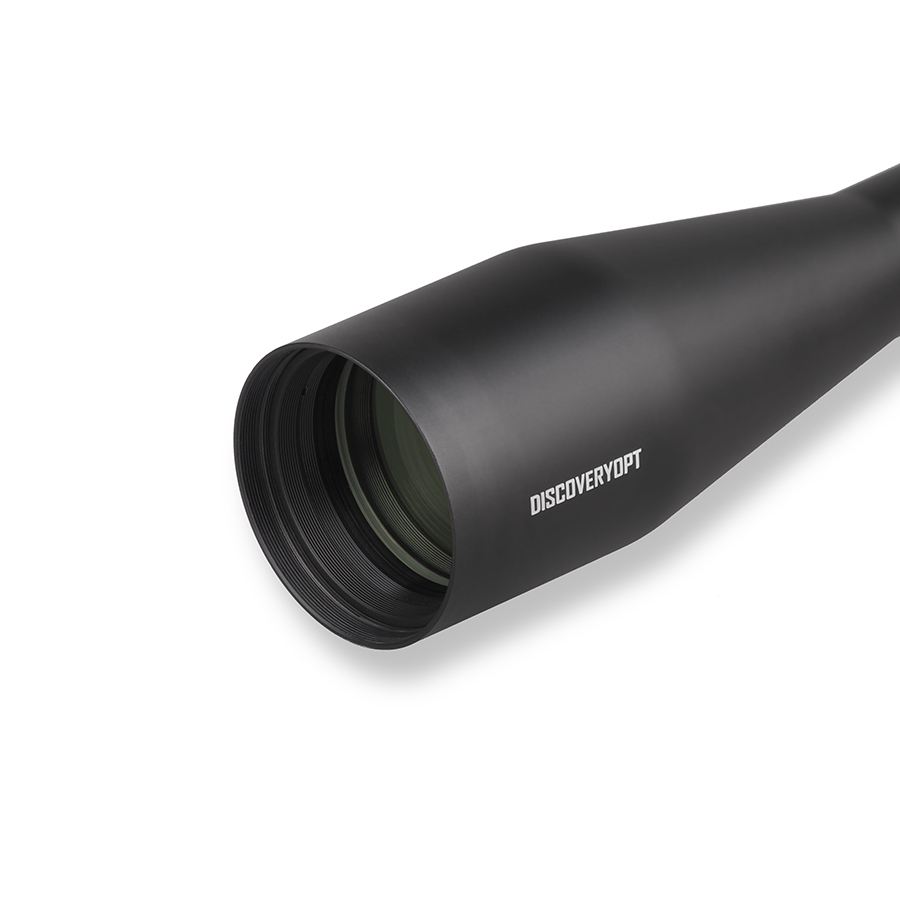

56mm Large Objective Lens & ED Optical System
Big 56mm objective maximizes light transmission at dawn, dusk and low-light environments; built-in ED glass eliminates chromatic aberration, delivering crisp, high-contrast, true-color sight pictures.
Comfortable Eye Relief & Clear Exit Pupil
Adjustable eye relief ranges from 3.3–3.4 in (8.5–8.7 cm), paired with 2.2–11.2mm variable exit pupil, preventing recoil eye injuries while maintaining a full clear field of view at all magnifications.
Field of view spans 24.6 ft (7.5 m) down to 4.9 ft (1.5 m) at 100 yards.
