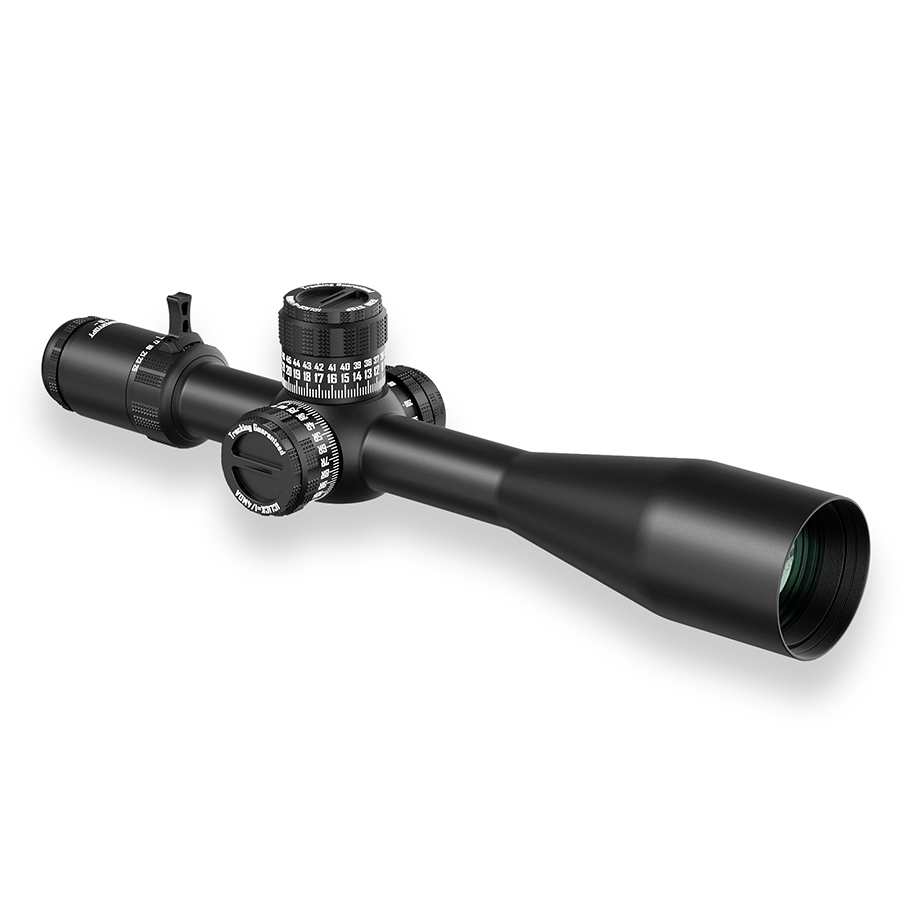

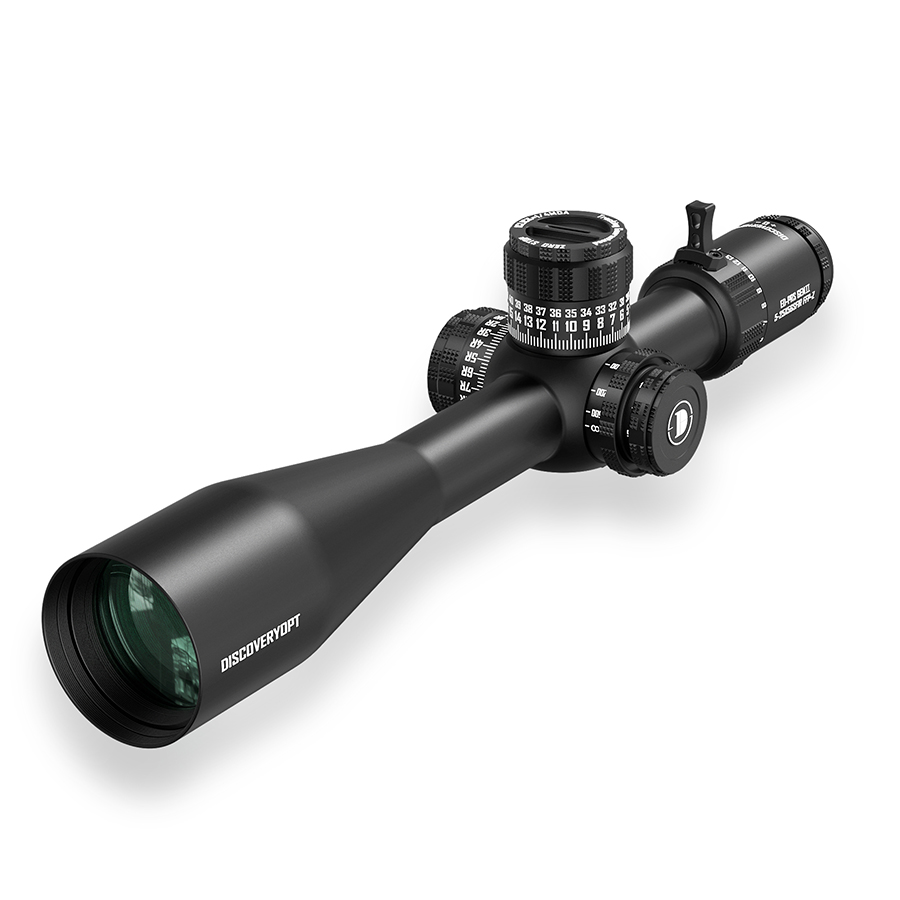

5-25X56SFIR FFP-Z (MOA)
Serial NO.:ED-PRS GEN2

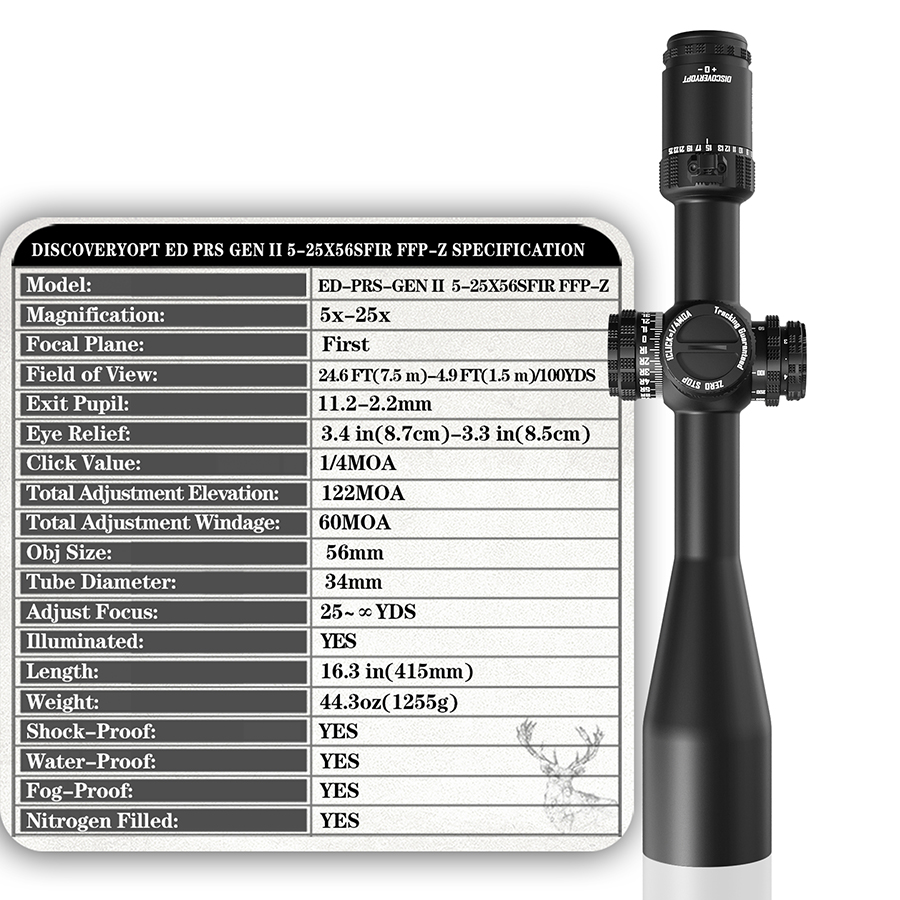

Specification
Magnification: 5-25X
Objective Dia.: 56mm
Tube Dia: 34mm (1.34inch)

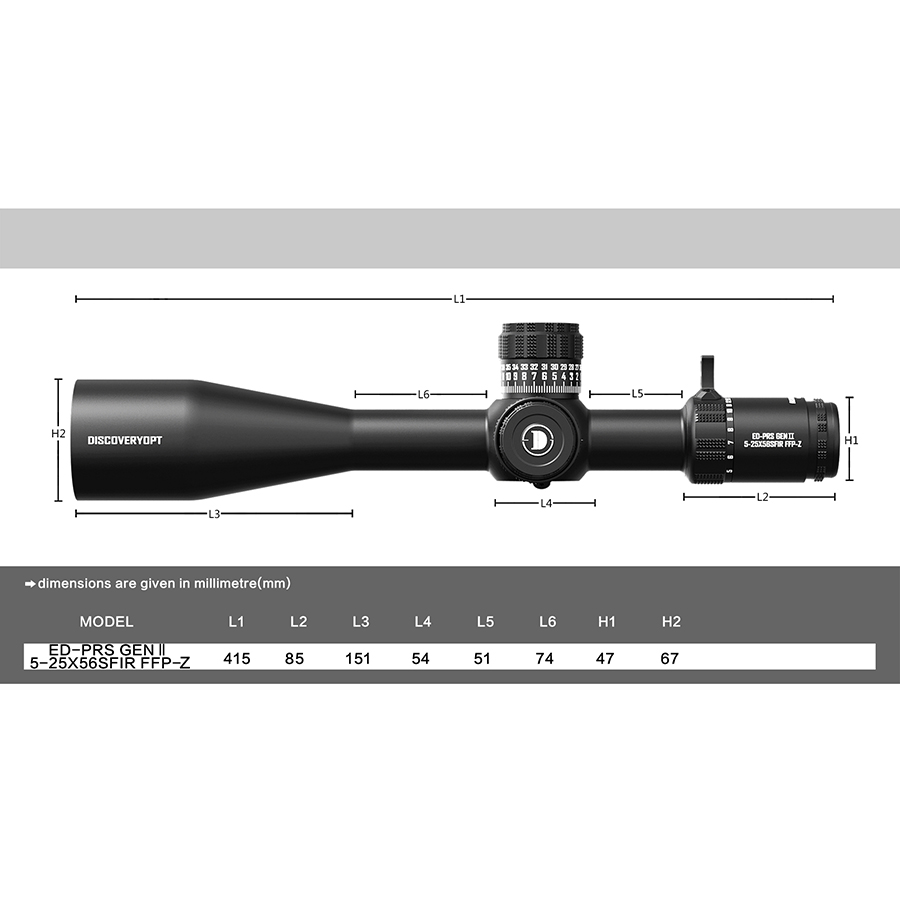

Length: 415mm ( 16.34 inch)
Weight:1255g( 44.3 oz)

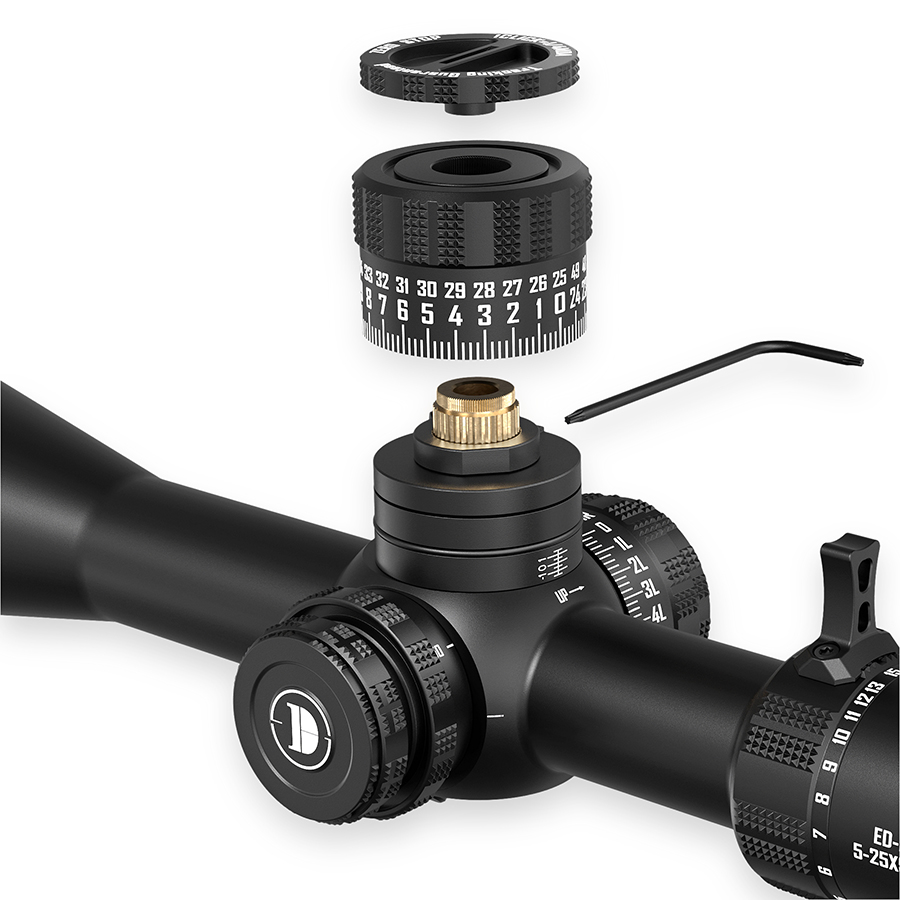

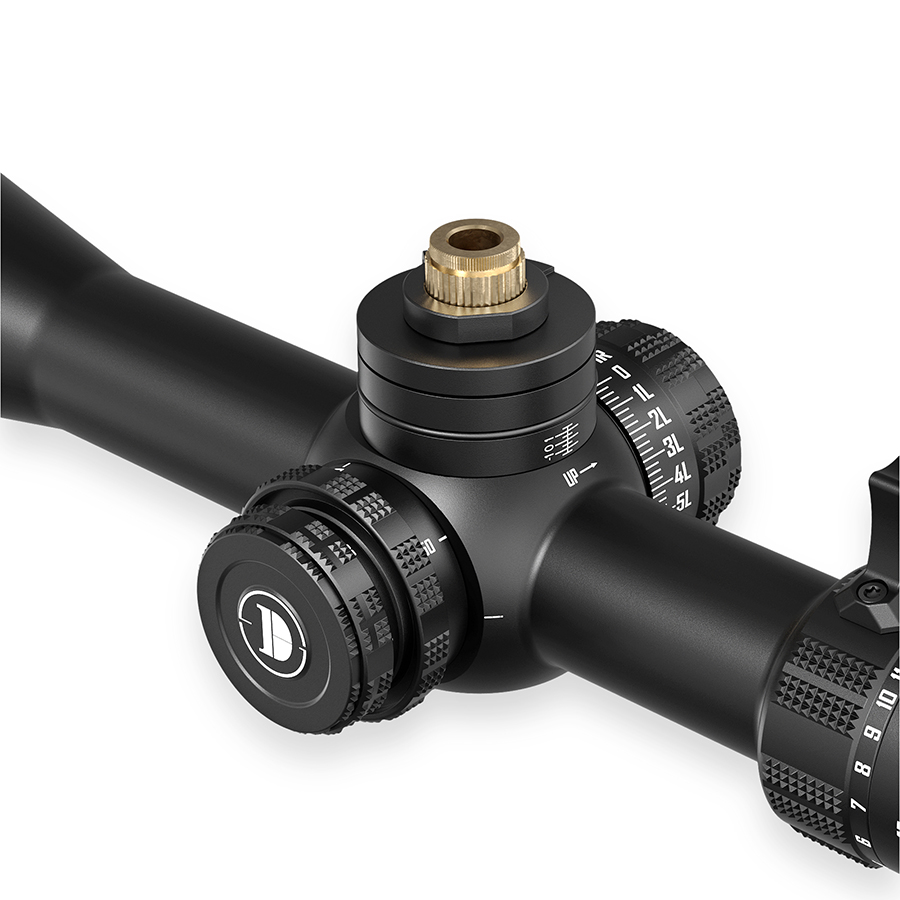

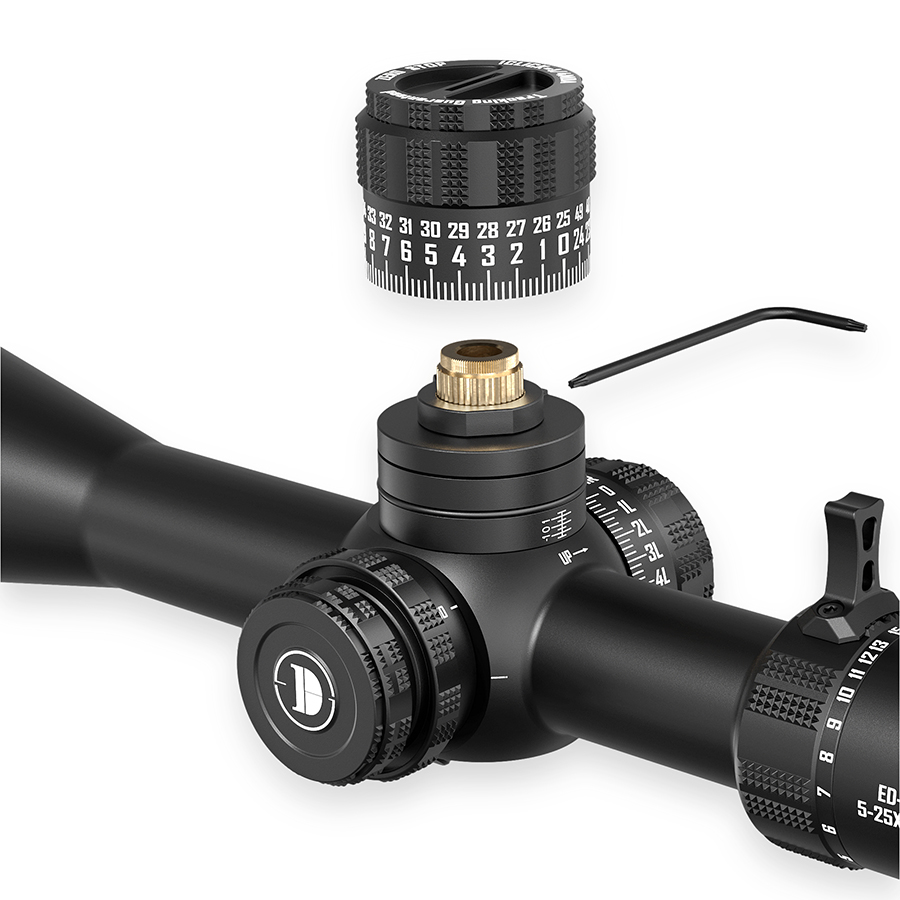

Focal Plane: First Focal Plane Zero Stop:yes
Illumination: Yes( Red X 6)
Adjust Focus: 25Yds-Infinity
Field of View:24.6FT(7.5m)-4.9FT(1.5m)/100YDS
Exit pupil diameter(mm):11.2mm-2.2mm
Exit pupil distance(Eye relief): 87mm-85mm
Click Adjustment Value:1/4 MOA
Elevation Adj. Range: 122MOA
Windage Adj. Range:60MOA
key features

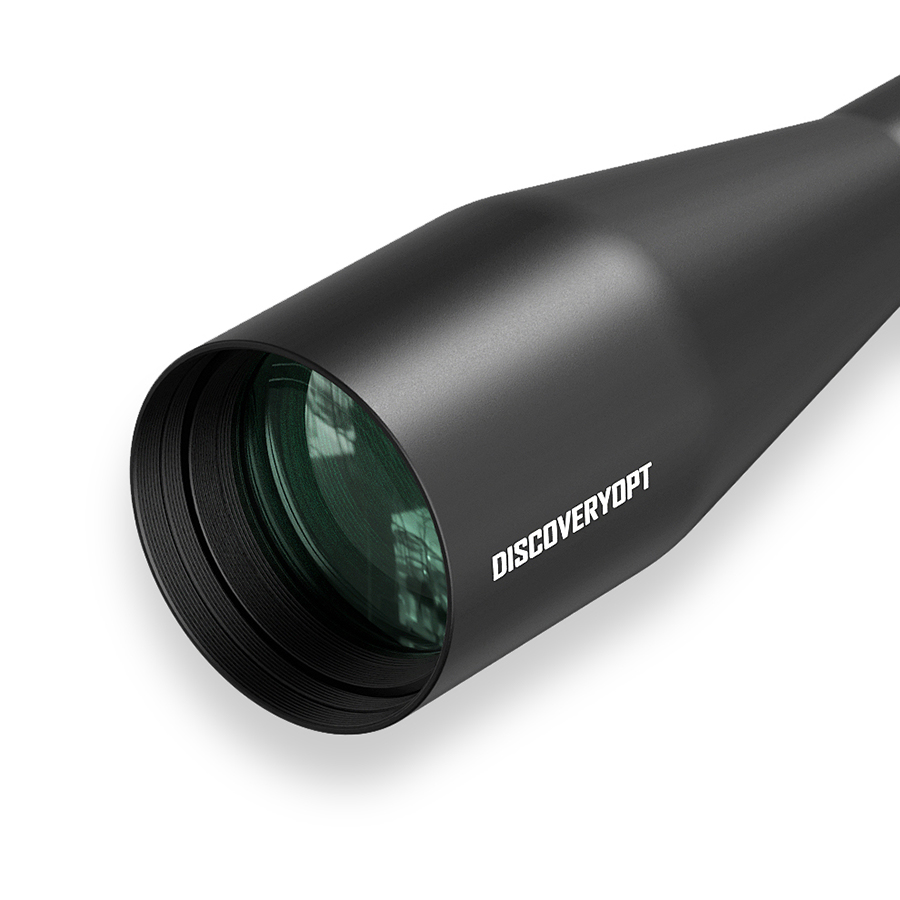

5–25x Variable Magnification & 56mm Large ED Objective Lens
The wide 5x to 25x zoom range covers close-range observation to ultra-long-distance precision aiming. The large 56mm ED objective lens maximizes light transmission at dawn, dusk and low-light conditions, effectively eliminating chromatic aberration to present high-contrast, true-color, distortion-free sight pictures.

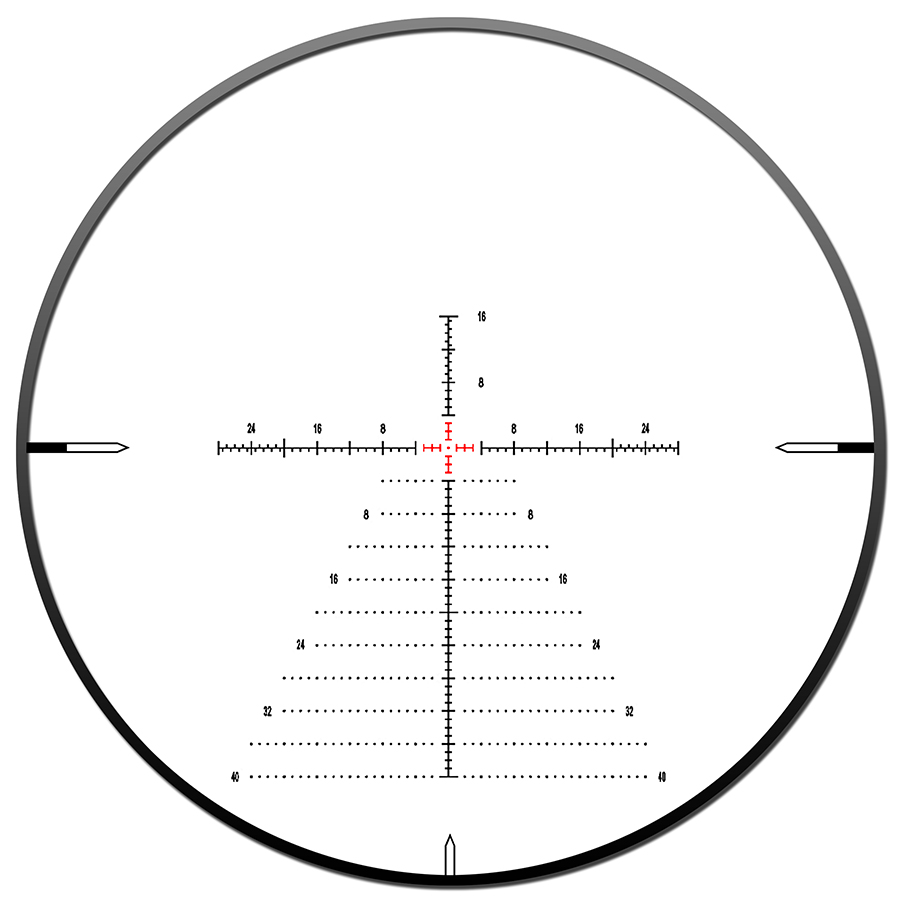

FFP First Focal Plane Illuminated Reticle
The etched illuminated reticle scales synchronously with magnification. Holdover and windage markings remain accurate at any zoom power, enabling instant, precise bullet drop compensation for long shots. Adjustable illumination brightness adapts to bright daylight and dim woodland environments.
Comfortable Viewing Parameters
Field of View: 24.6 ft (7.5 m) ~ 4.9 ft (1.5 m) at 100 YDS
Exit Pupil: 11.2–2.2mm
Eye Relief: 3.4 in (8.7cm) ~ 3.3 in (8.5cm), effectively avoiding recoil eye injury and delivering full, clear sight picture.
Parallax Adjustment: 25 YDS to infinity, eliminating parallax error for sharp target focusing at all distances.
