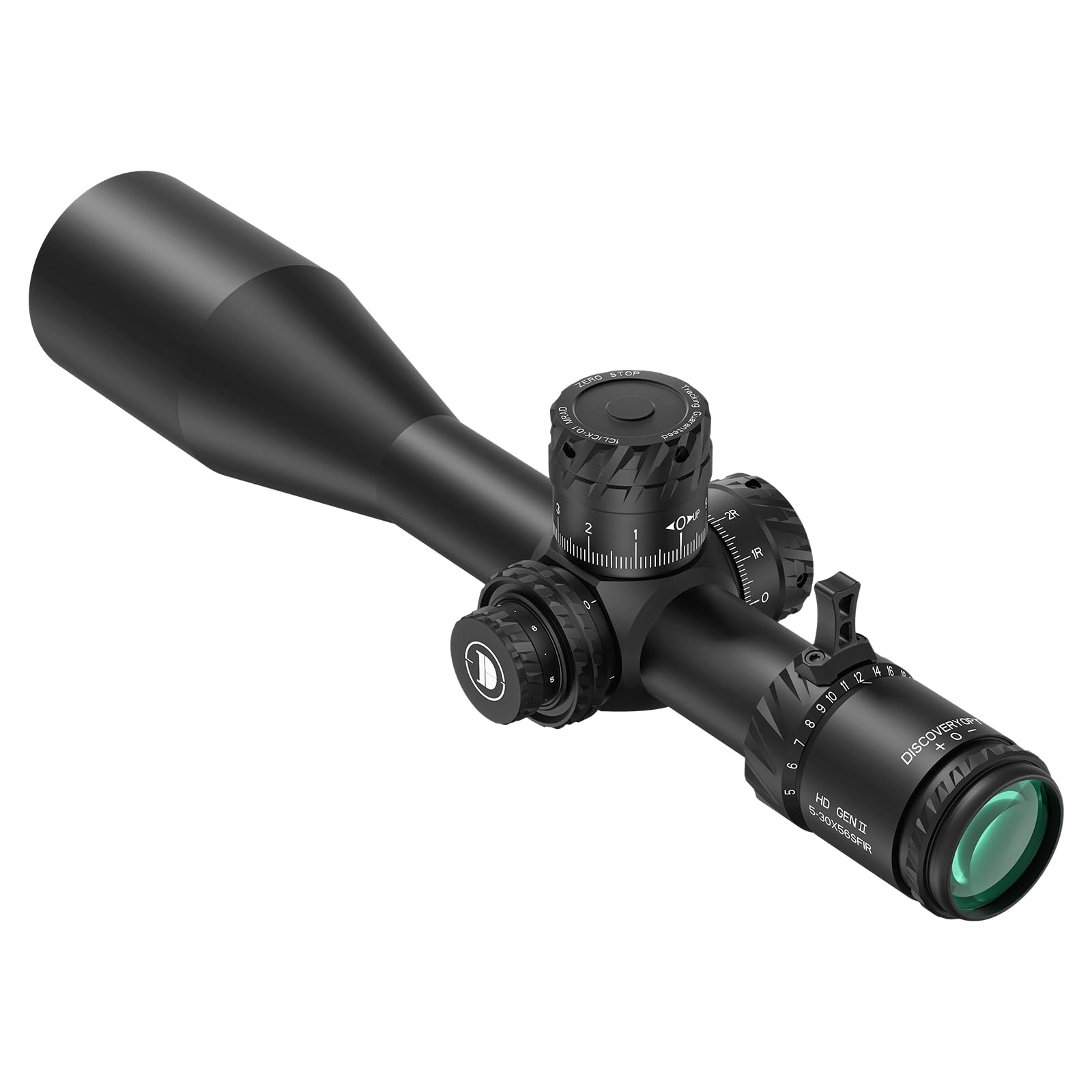

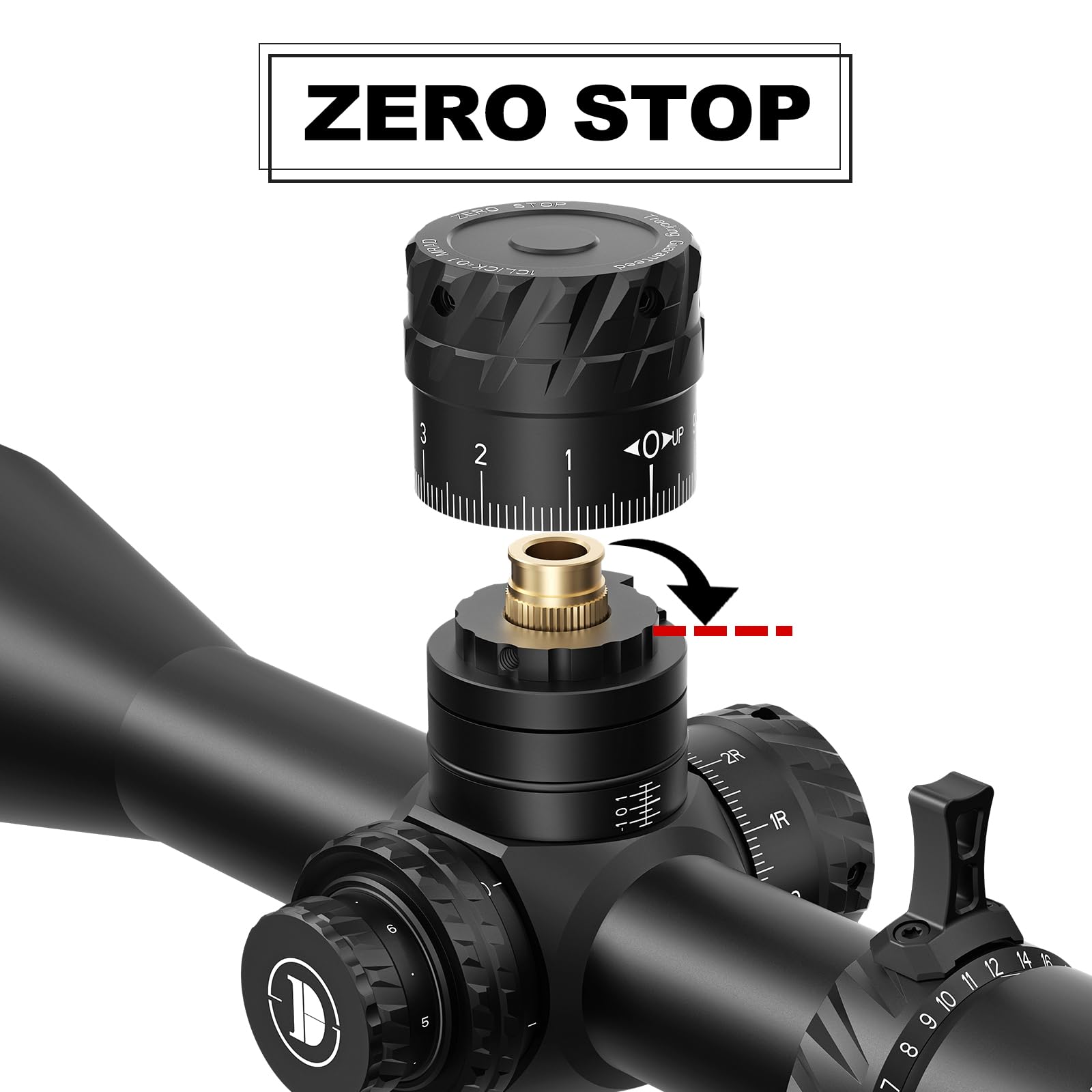

5-30X56SFIR FFP ZERO STOP

Serial NO.:HD-GEN2

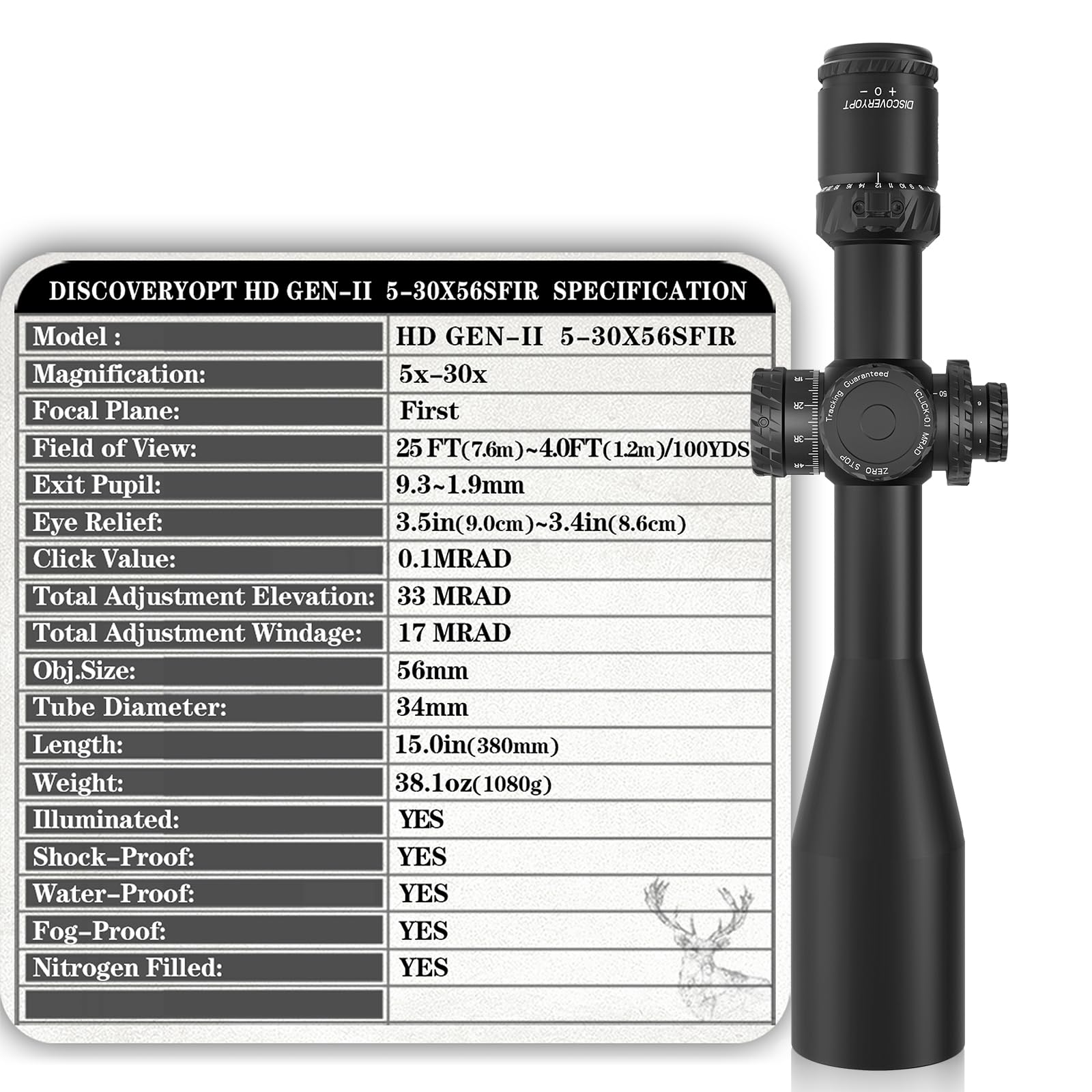

Specification

Product Description

Magnification: 5-30X
Objective Dia.: 56mm
Tube Diameter: 34mm(1.34inch)

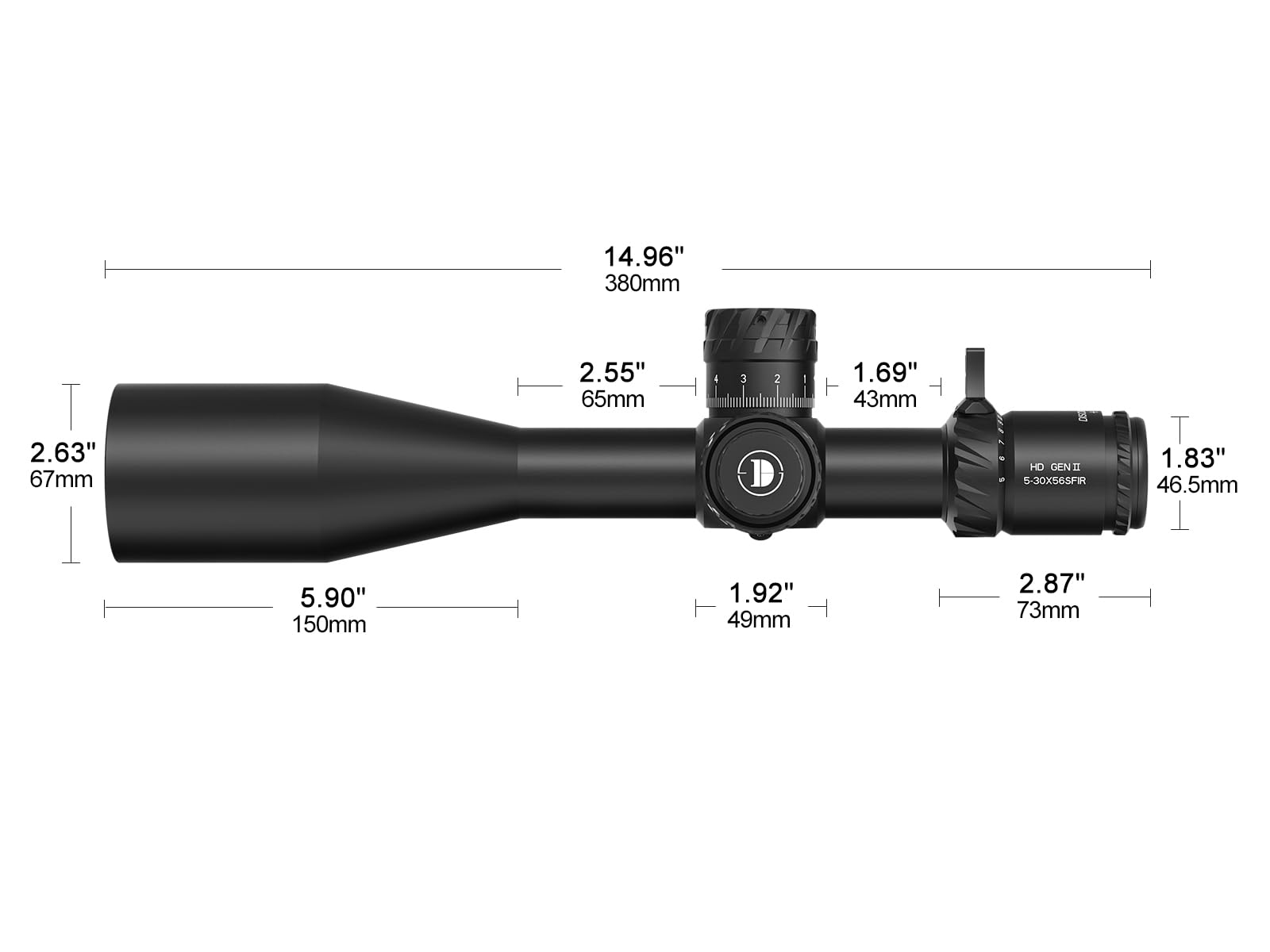

Length: 380mm(15.00 inch)
Weight:1080 g(38.1 oz)
Focal Plane: First Focal Plane


Illumination: YES
Adjust Focus: Side Parallax
Field Of View@100yards (ft): 25-4.0FT / 100YDS
Eye Relief: 3.5in-3.4in (90mm-86mm)


Click Adjustment Value: 0.1MRAD
Elevation Adj. Range: 33 MRAD
Windage Adj. Range: 17 MRAD

key features

Featuring an impressive 5–30x magnification range paired with a large 56mm objective lens, it delivers a field of view from 25 ft (7.6 m) at 5x down to 4.0 ft (1.2 m) at 30x per 100 yards, balancing situational awareness at lower powers with exceptional detail at maximum zoom.

Built on a robust 34mm tube, the scope offers ultra-precise 0.1 MRAD click adjustments, with 33 MRAD of elevation travel and 17 MRAD of windage travel, enabling accurate holdover and wind correction for extreme distances. It provides consistent eye relief (3.4–3.5 in / 8.6–9.0 cm) and exit pupil (1.9–9.3 mm), ensuring comfortable, reliable use across all magnifications.

The illuminated reticle enhances visibility in varying light conditions, while its shockproof, waterproof, fog-proof, and nitrogen-filled construction guarantees stable performance in harsh environments and under heavy recoil. At 15.0 in (380 mm) long and weighing 38.1 oz (1080 g), it is purpose-built for long-range setups where maximum optical performance and adjustment range are priorities.
