NV 3X24IR SFP
Serial NO.:HT

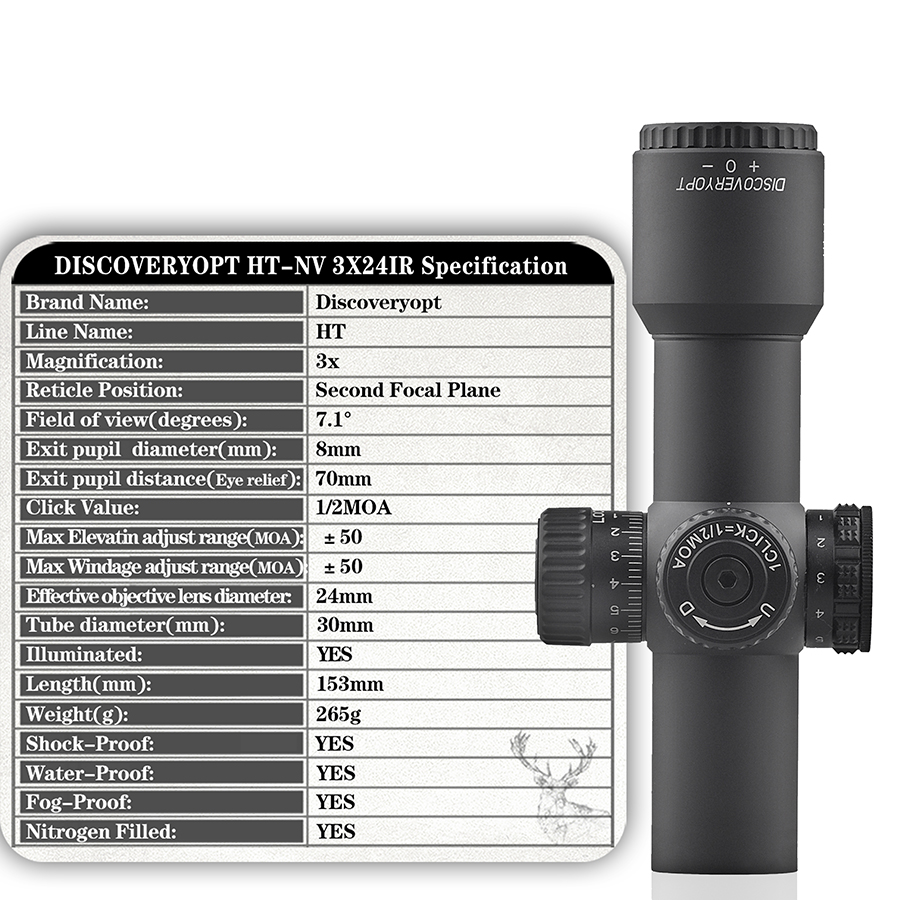

Specification
Product Description
Magnification: 3X
Objective Dia.: 24mm
Tube Diameter: 25.4mm(1inch)

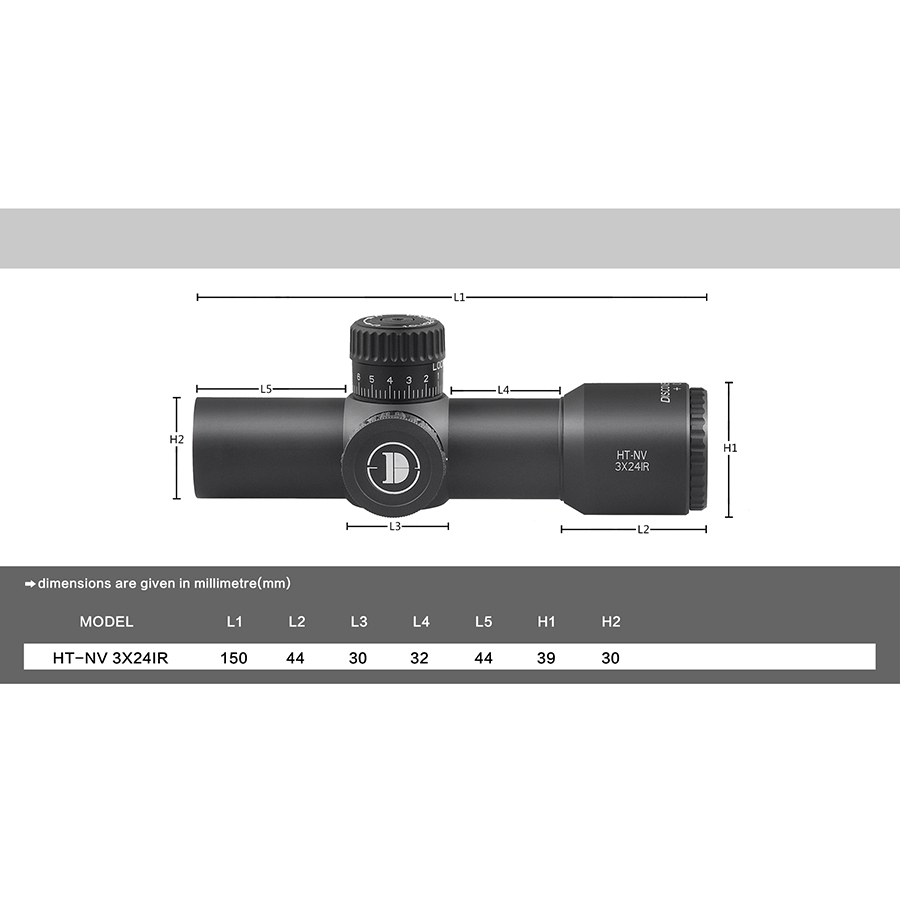

Length: 153mm(6.02inch)
Weight: 265g(9.35oz)

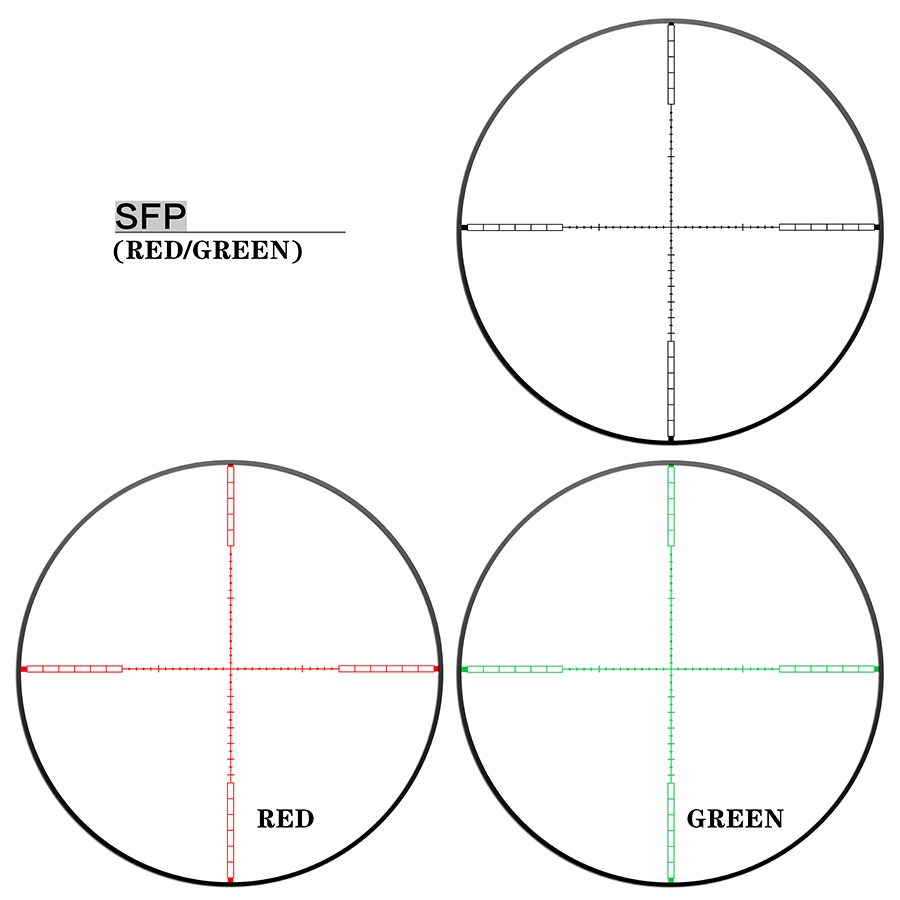

Reticle: Mil Dot
Focal Plane: Second Focal Plane
Illumination: No
Adjust Focus: No
Fixed Parallax Adjustment (Yds): fixed @ 100yds
Field of View(degrees): 7.1
Exit Pupil Diameter(mm):8mm
Exit Pupil Distance(Eye Relief): 70mm
Exit Pupil Diameter(mm):8mm
Exit Pupil Distance(Eye Relief): 70mm
Zero Reset: YES
Zero Stop: NO
Revolution Indicator: NO

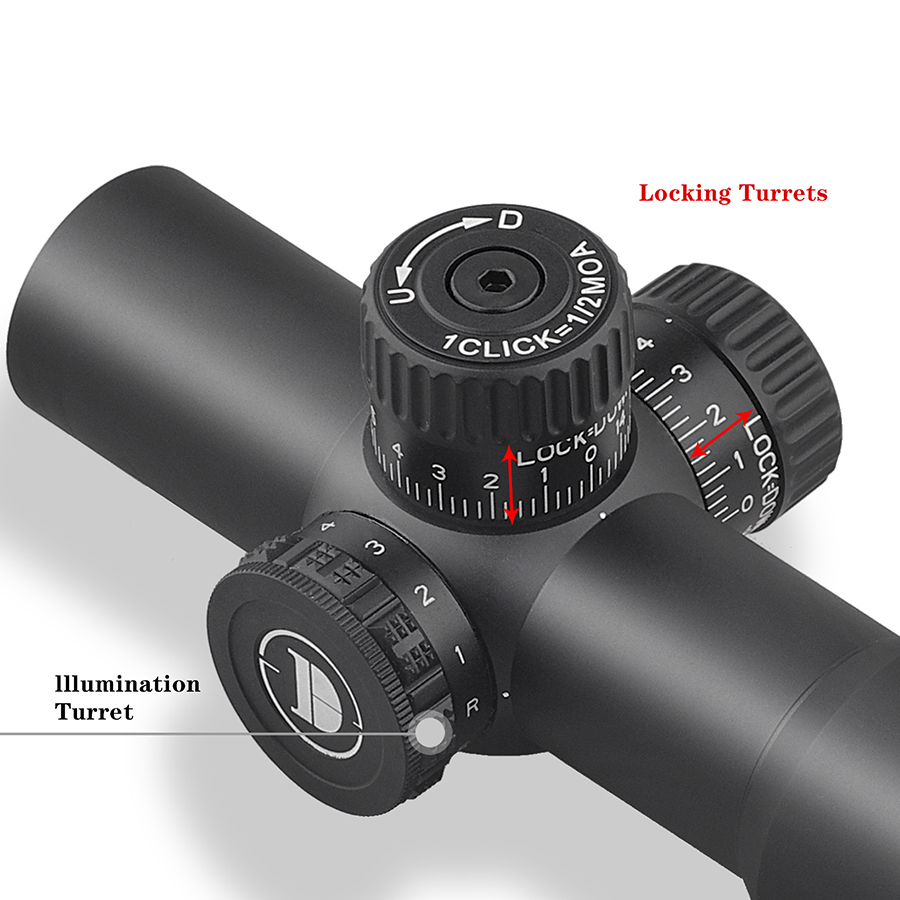

Zero Lock: YES(Lock=Down)
Click Adjustment Value: 1/2MOA
Elevation Adj. Range: 50MOA
Windage Adj. Range: 50MOA
Coating: Fully Multi-coated Lenses
Nitrogen Filled: Yes
Shock Proof: Yes
Water Proof: Yes
Fog Proof: Yes
key features
Ultra-short optical path (15CM),
All-optical lens system (non-prism),
Ultra-strong anti-seismic,
Ultra-high definition, day and night double fusion coating system,
Waterproof, Sockproof
Inquiry
