DTD

Serial NO.:219BC

Specification

Product Description

Sensor: 12μm 256×192 uncooled vanadium oxide

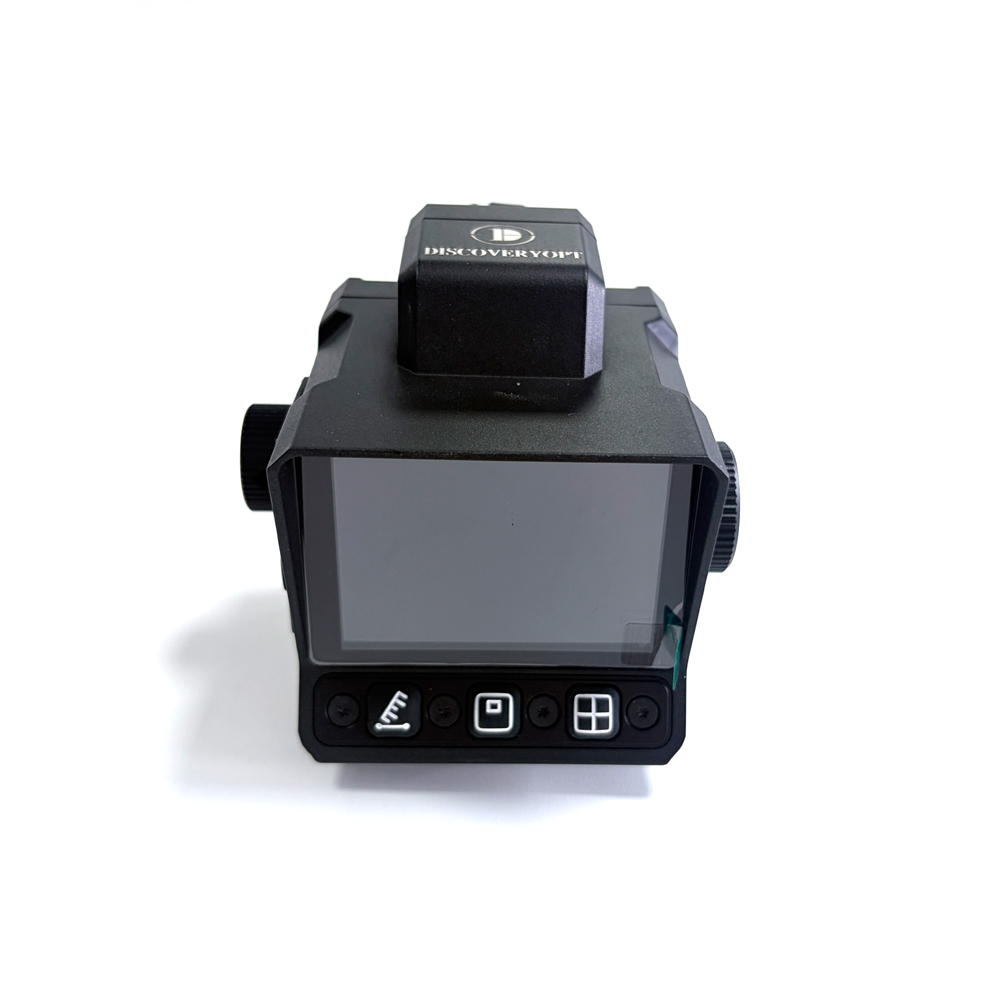

Display: 2.4-inch AMOLED 600×450
Laser rangefinder: 5–1200m
Focal length: 19mm/F1.0
Detection distance (human): 897m
Electronic zoom: 1×–4×

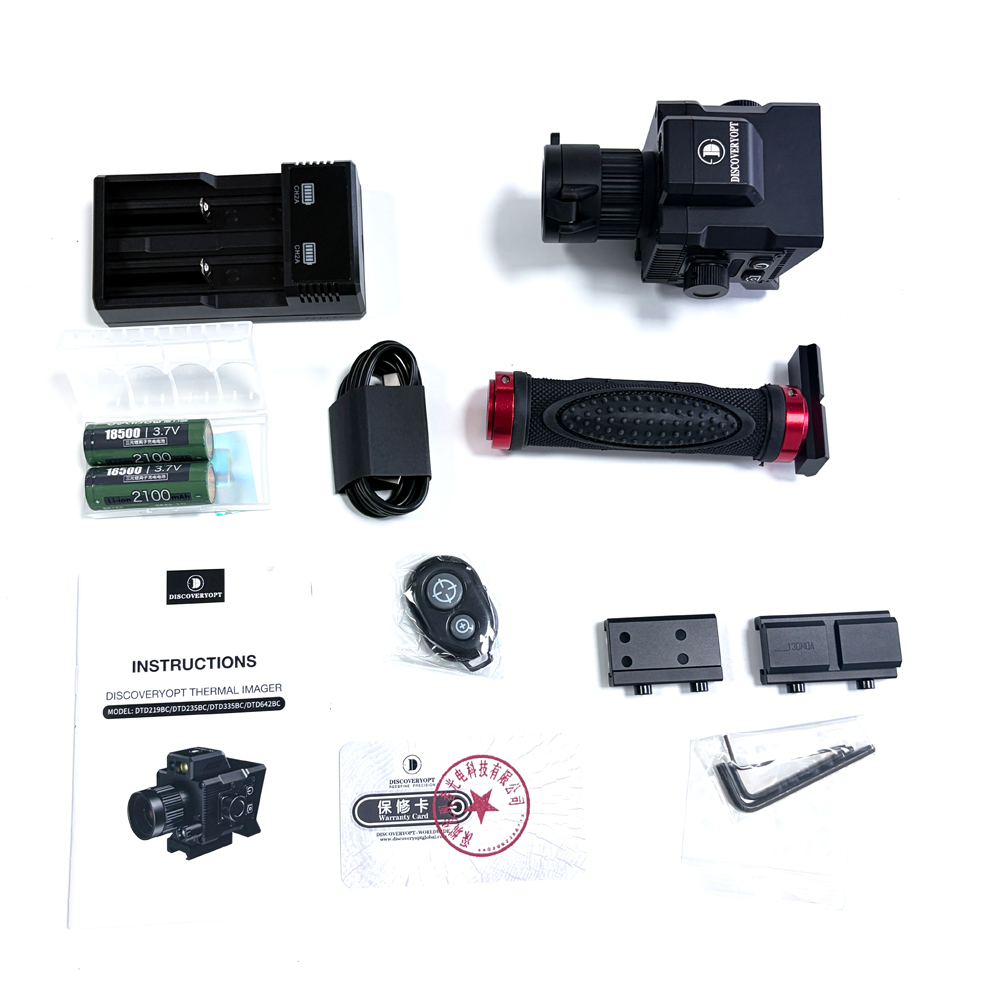

Battery: 1×18650/18500 removable
Working time: up to 6 hours
Storage: 32GB eMMC
Functions: ballistic calculation, hotspot tracking, picture-in-picture, photo/video, Wi-Fi transmission, UVC output
Protection: IP66 waterproof, 1000G shock resistance

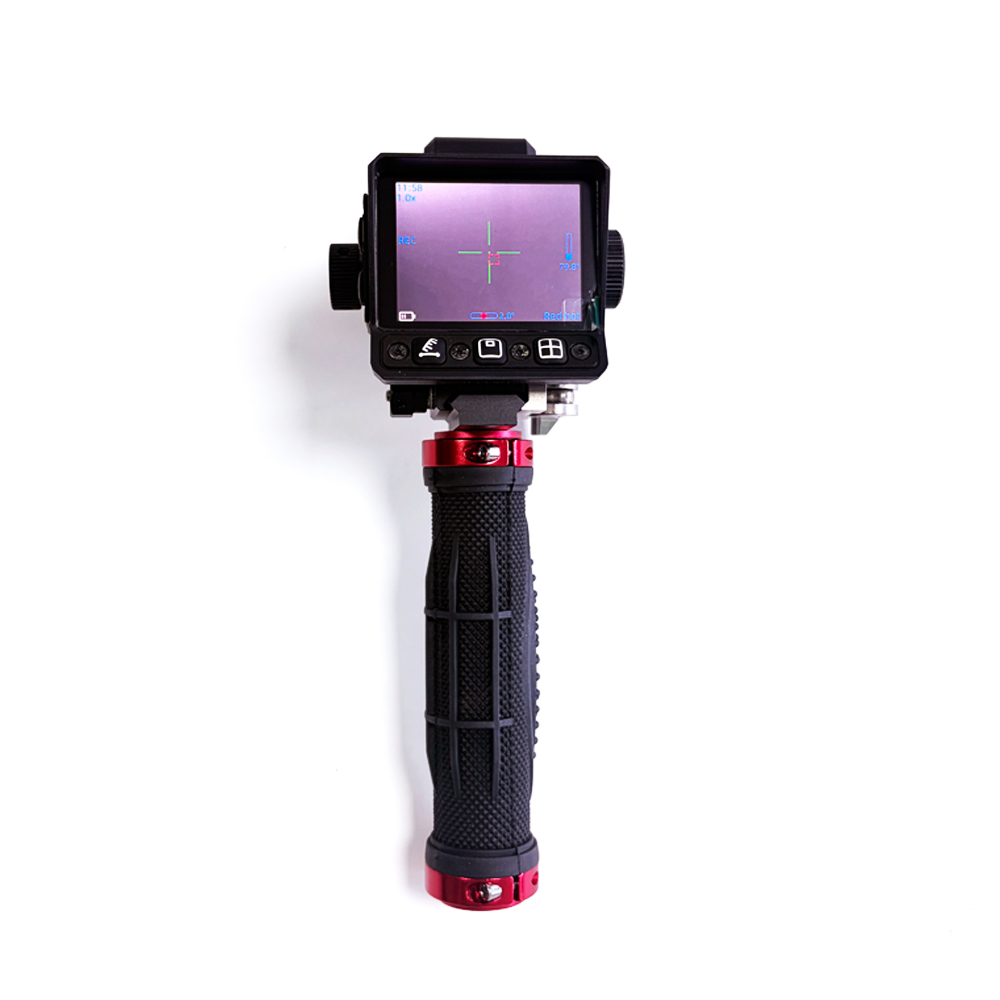

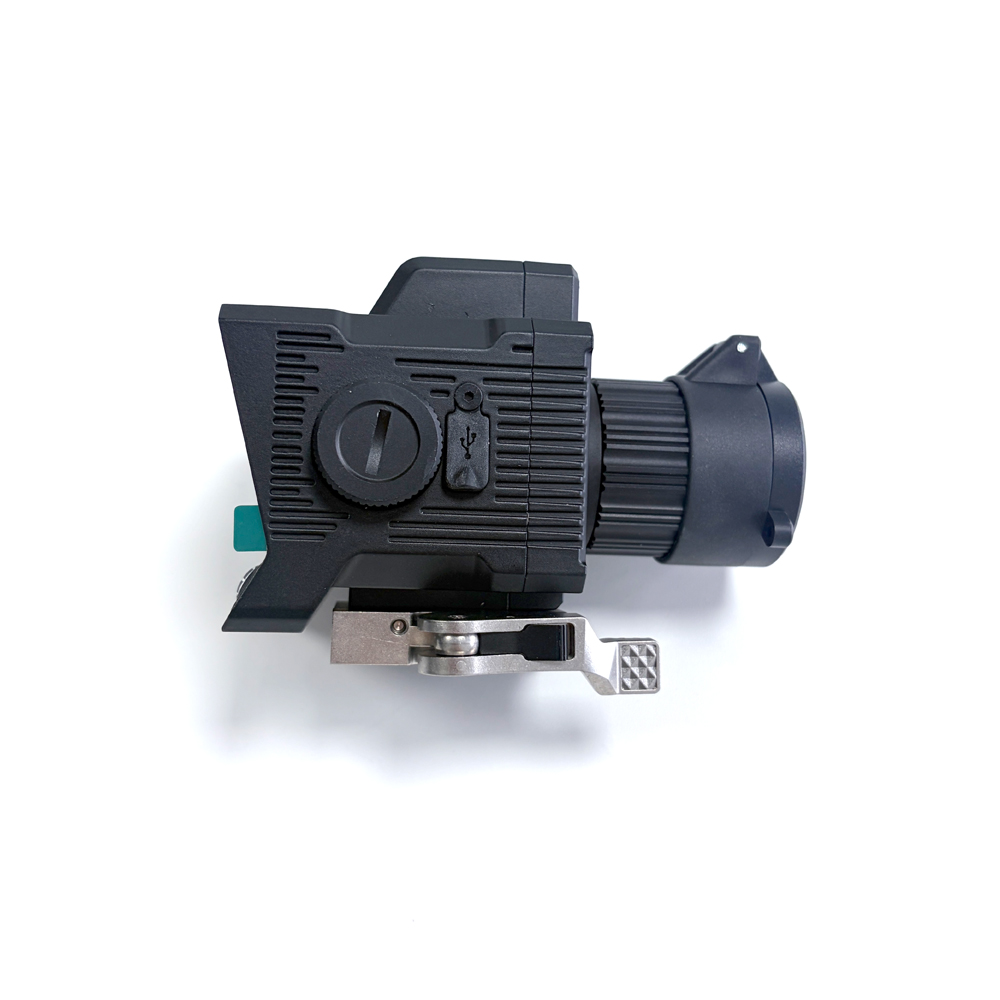

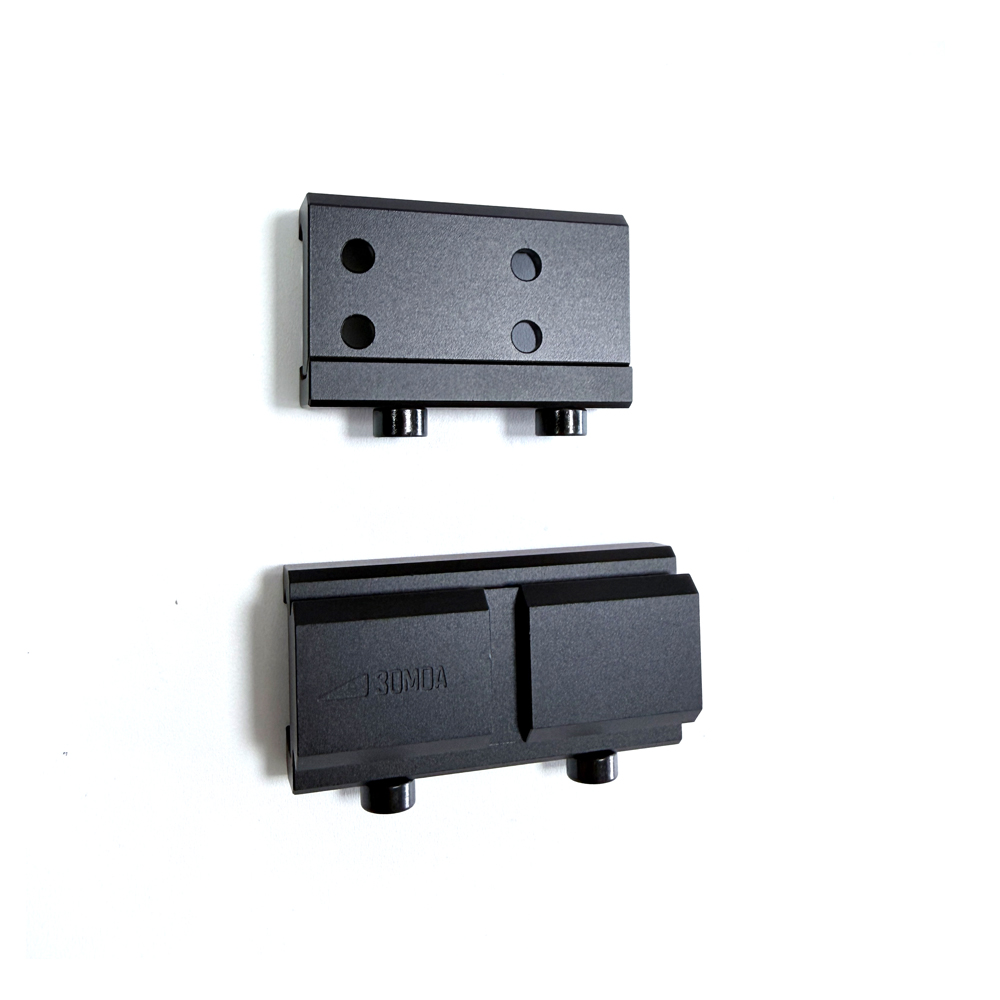

Usage: handheld & rifle-mountable with quick-detach Picatinny mount

key features

This unit supports both handheld use and rifle mounting with a quick‑detach Picatinny mount, making it perfect for scouting and aiming. It is equipped with a 5–1200m laser rangefinder, ballistic calculation, hotspot tracking, picture‑in‑picture and 1×–4× electronic zoom for fast, accurate targeting.

Built‑in 32GB storage supports photo and video recording, while Wi‑Fi image transmission and UVC output allow real‑time viewing and sharing via mobile APPDISCOVERYOPT®. Powered by one removable 18650/18500 battery, it runs up to 6 hours and features IP66 waterproof/dustproof and 1000G shock resistance for reliable field performance.

With multiple pseudo‑color modes (White Hot/Black Hot/Red Hot/Iron Red) and flexible scene settings, the DTD219BC combines portability, durability and professional functions in a cost‑effective package
