DTD

Serial NO.:335BC

Specification

Product Description

Sensor: 12μm 348×288 uncooled vanadium oxide

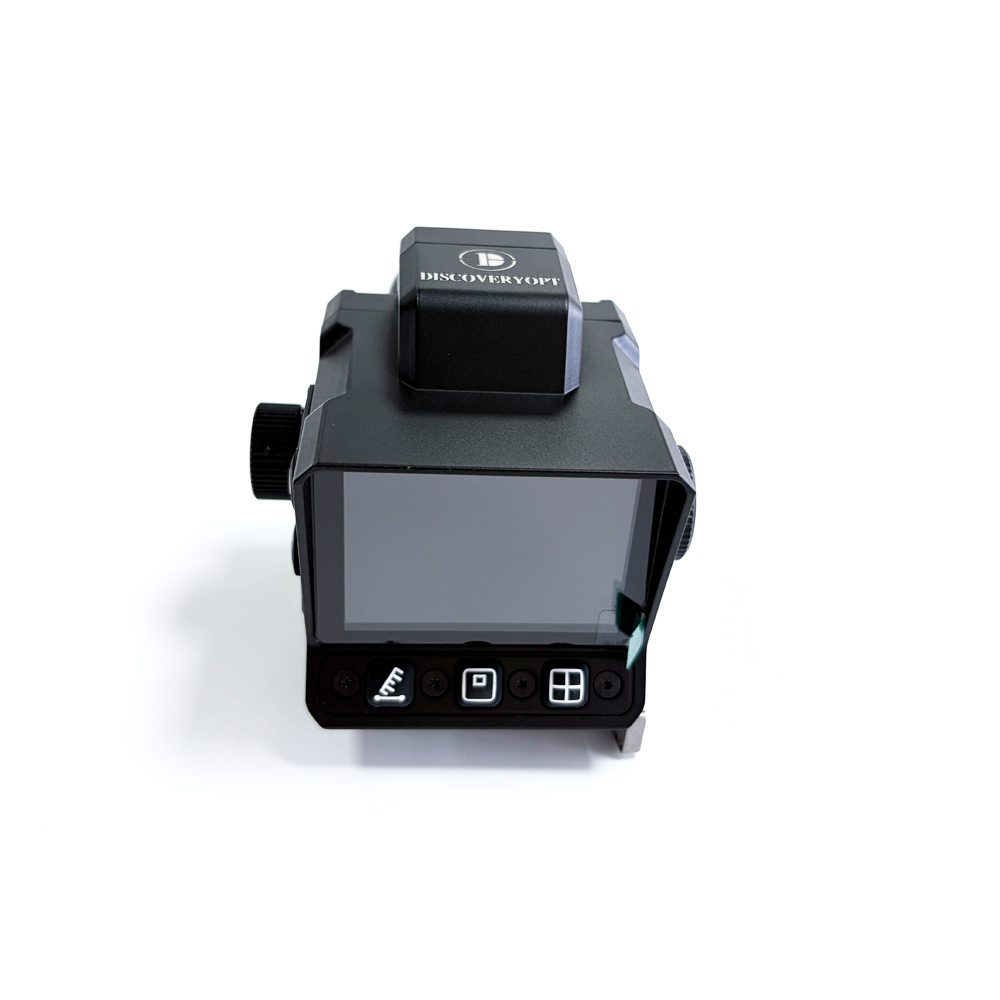

Display: 2.4-inch AMOLED 600×450
Laser rangefinder: 5–1200m
Focal length: 35mm/F1.0
Detection distance (human): 1652m
Electronic zoom: 1×–4×
Battery: 1×18500/18650 removable
Working time: up to 5 hours
Storage: 32GB eMMC
Functions: ballistic calculation, hotspot tracking, picture-in-picture, photo/video, Wi-Fi transmission, UVC output
Protection: IP66 waterproof, 1000G shock resistance

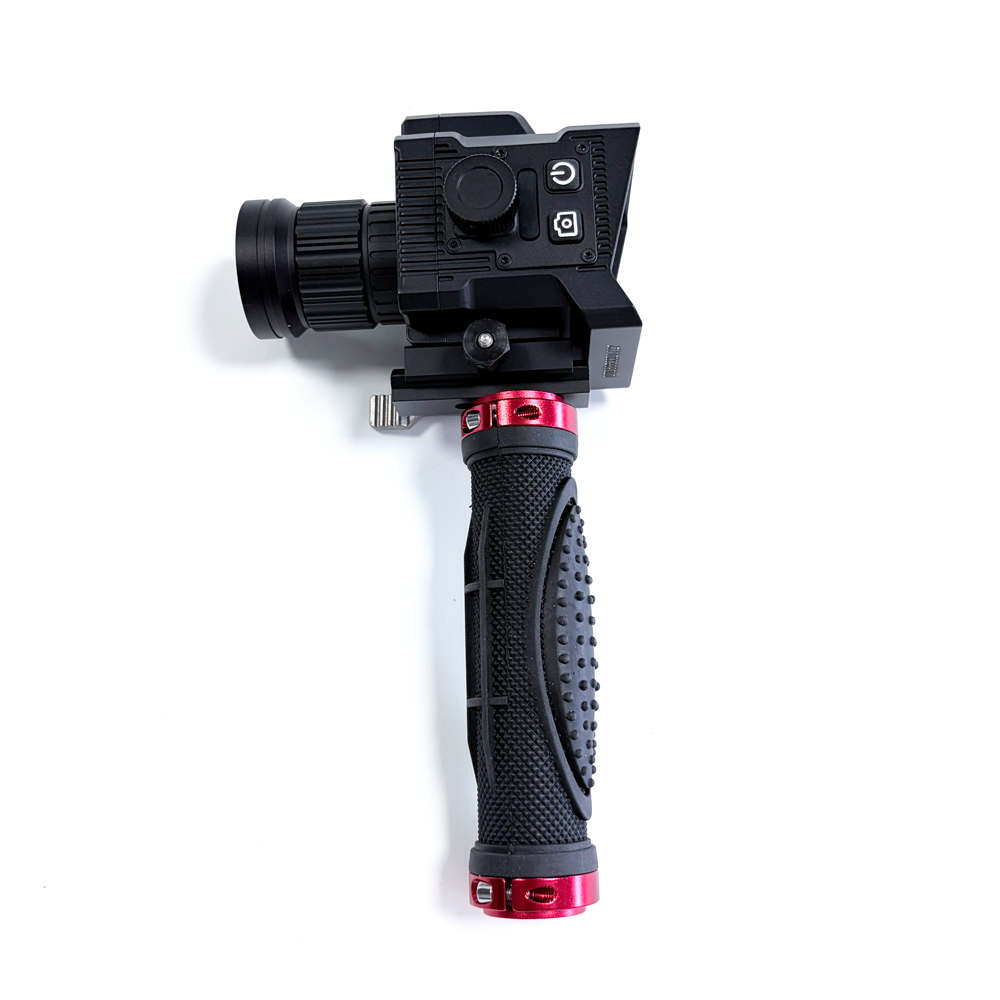

Usage: handheld & rifle-mountable with quick-detach Picatinny mount

key features

This unit supports both handheld use and rifle mounting with a quick-detach Picatinny mount, making it ideal for scouting and precise aiming. It is equipped with a 5–1200m laser rangefinder, ballistic calculation, hotspot tracking, picture-in-picture and 1×–4× electronic zoom to improve targeting efficiency and accuracy.

Built-in 32GB storage supports photo and video recording, while Wi-Fi image transmission and UVC output enable real-time monitoring and sharing via mobile APP. Powered by one removable 18650/18500 battery, it works up to 5 hours and features IP66 waterproof/dustproof and 1000G shock resistance for stable performance in harsh environments.

With multiple pseudo-color modes (White Hot/Black Hot/Red Hot/Iron Red) and adjustable scene modes, the DTD335BC offers excellent reliability, long detection distance and professional functions to meet diverse outdoor demands.
